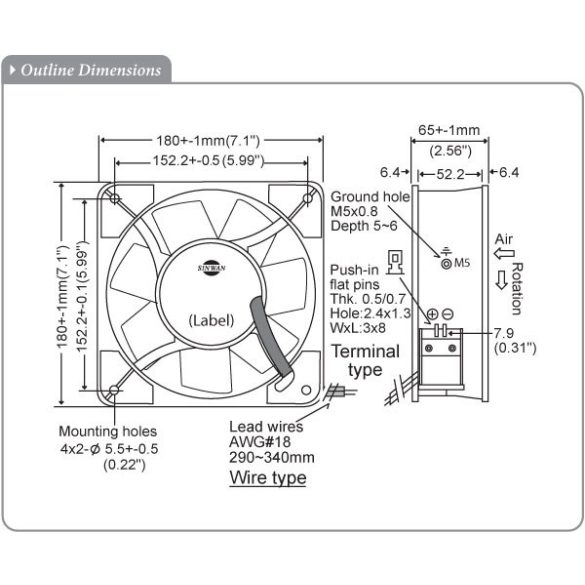

M180FAN (HR) - Sinwan AC Metal Impeller, Reverse Airflow, Dia. 180x180x65mm/7x2.5inch 400 CFM

Name: M180FAN (HR) - Sinwan AC Metal Impeller, Reverse Airflow, Dia. 180x180x65mm/7x2.5inch 400 CFM
SKU: M180FAN_HR

Rated
Volt

Voltage
Range

Freq

Input
Power

Ref.
Speed

Max.Airflow

Max.Static Pressure

Noise
Level

Model No

VAC

Watt

RPM

CFM

m3/min

Inch/H2O

db(A)

M180FAN11-1** (100)

100

100~120

50/60

60/80

2750/3250

330/400

9.3/11.3

0.75/0.8

19.05/20.32

2/1

M180FAN11-1**

115

100~120

50/60

60/80

2750/3250

330/400

9.3/11.3

0.6/0.8

15.24/20.32

2/1

M180FAN11-2**

115

100~120

50/60

55/65

2300/2200

275/265

7.8/7.5

0.58/0.52

14.73/13.21

4/3

M180FAN11-3**

115

100~120

50/60

20/30

1500/1600

185/200

5.2/5.7

0.35/0.38

8.89/9.65

6/5

M180FAN11-4**

115

100~120

50/60

18/25

1100/1000

130/125

3.7/3.5

0.25/0.23

6.35/5.84

8/7

M180FAN11-1/2**
dual speed

115

100~120

50/60

-1 60/80
-2 55/65

2750/3250
2300/2200

330/400
275/265

9.3/11.3
7.8/7.5

0.6/0.8
0.58/0.52

15.24/20.32
14.73/13.21

65
53

2/1
4/3

M180FAN11-3/4**
dual speed

115

100~120

50/60

-3 20/30
-4 18/25

1500/1600
1100/1000

185/200
130/125

5.2/5.7
3.7/3.5

0.35/0.38
0.25/0.23

8.89/9.65
6.35/5.84

42
35

6/5
8/7

M180FAN22-1** (200)

200

200~240

50/60

60/80

2750/3250

330/400

9.3/11.3

0.75/0.8

19.05/20.32

2/1

M180FAN22-1**

230

200~240

50/60

60/80

2750/3250

330/400

9.3/11.3

0.75/0.8

19.05/20.32

2/1

M180FAN22-2**

230

200~240

50/60

55/65

2300/2200

275/265

7.8/7.5

0.58/0.52

14.73/13.21

4/3

M180FAN22-3**

230

200~240

50/60

20/30

1500/1600

185/200

5.2/5.7

0.35/0.38

8.89/9.65

6/5

M180FAN22-4**

230

200~240

50/60

18/25

1100/1000

130/125

3.7/3.5

0.25/0.23

6.35/5.84

8/7

M180FAN22-1/2**
dual speed

230

200~240

50/60

-1 60/80
-2 55/65

2750/3250
2300/2200

330/400
275/265

9.3/11.3
7.8/7.5

0.6/0.8
0.58/0.52

15.24/20.32
14.73/13.21

65
53

2/1
4/3

M180FAN22-3/4**
dual speed

230

200~240

50/60

-3 20/30
-4 18/25

1500/1600
1100/1000

185/200
130/125

5.2/5.7
3.7/3.5

0.35/0.38
0.25/0.23

8.89/9.65
6.35/5.84

42
35

6/5
8/7

M180FAN11/22-1**
dual voltage

115
/230

100~120
200~240

50/60

60/80

2750/3250

330/400

9.3/11.3

0.6/0.8

15.24/20.32

2/1

M180FAN2-1**

12~14

50/60

60/80

2700/3250

330/400

9.3/11.3

0.6/0.8

15.24/20.32

2/1

M180FAN4-1**

24~28

50/60

60/80

2700/3250

330/400

9.3/11.3

0.6/0.8

15.24/20.32

2/1

M180FAN6-1**

28~34

50/60

60/80

2700/3250

330/400

9.3/11.3

0.6/0.8

15.24/20.32

2/1

M180FAN8-1**

48~58

50/60

60/80

2700/3250

330/400

9.3/11.3

0.6/0.8

15.24/20.32

2/1

M180FAN44-1** (380)

380

380~440

50/60

60/80

2800/3250

330/400

9.3/11.3

0.6/0.8

15.24/20.32

2/1

M180FAN44-1**

440

380~440(~480)

50/60

60/80

2800/3250

330/400

9.3/11.3

0.6/0.8

15.24/20.32

2/1

** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
Sinwan reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%

Details

Data

Details


	Motor Type:	Capacitor induction, outer rotor, 1-phase

	Burnout Protection:	Thermal protector

	IP Protection:	IP56, IP68


	Frame:	Aluminum die cast, natural color(AN)

	Impeller:	7 blades, all metal

	Bearing:	Two ball bearings

	Rotation:	CCW seen on rotor

	Connection:	Wire lead or terminal flat pin connecting

	Weight:	1800 g (3.96 Lbs)


	Dielectric Strength:	Over 1 min. at 1,500 VAC, 0.5mA, 50/60Hz

	Insulation Resistance:	Over 100 MΩ at DC 500V

	Signal Output:	Optional:R/D alarm output, tachometer output F/G


	Operating Temp:	Ambient non-condensing -30~+80C

	Storage Temp:	-40C~+100C (at 65%RH)

	Life Expectancy:	L10 50K hours at 55C

http://sinwan.eu

Data

Item number

M180FAN_HR
