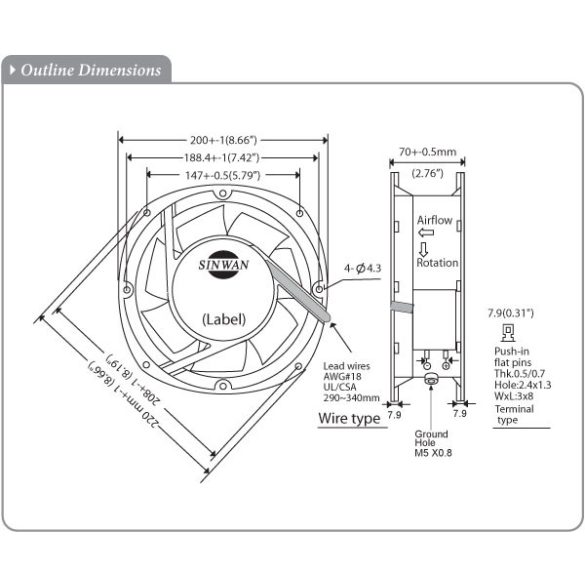

M200RAN (HR) - Sinwan AC Metal Impeller, Reverse Airflow, Dia. 200x220x70mm/7.8x2.8inch 485 CFM

Name: M200RAN (HR) - Sinwan AC Metal Impeller, Reverse Airflow, Dia. 200x220x70mm/7.8x2.8inch 485 CFM
SKU: M200RAN_HR

Rated
Volt

Voltage
Range

Freq

Input
Power

Ref.
Speed

Max.Airflow

Max.Static Pressure

Noise
Level

Model No

VAC

Watt

RPM

CFM

m3/min

Inch/H2O

db(A)

M200RAN11-1** (100)

100

100~120

50/60

95/105

2800/3300

430/485

12.2/13.7

0.82/0.93

20.83/23.62

2/1

M200RAN11-1**

115

100~120

50/60

95/105

2800/3300

430/485

12.2/13.7

0.82/0.93

20.83/23.62

2/1

M200RAN11-2**

115

100~120

50/60

80/95

2400/2600

365/395

10.3/11.2

0.68/0.75

17.27/19.05

4/3

M200RAN11-3**

115

100~120

50/60

32/40

1600/1500

245/230

6.9/6.5

0.46/0.42

11.68/10.67

6/5

M200RAN11-4**

115

100~120

50/60

24/33

1200/1100

190/160

5.4/4.5

0.35/0.30

8.89/7.62

8/7

M200RAN11-1/2**
dual speed

115

100~120

50/60

95/105
80/95

2800/3300
2400/2600

430/485
365/395

12.2/13.7
10.3/11.2

0.82/0.93
0.68/0.75

20.83/23.62
17.27/19.05

68
54

2/1
4/3

M200RAN11-3/4**
dual speed

115

100~120

50/60

32/40
24/33

1600/1500
1200/1100

245/230
190/160

6.9/6.5
5.4/4.5

0.46/0.42
0.35/0.30

11.68/10.67
8.89/7.62

43
35

6/5
8/7

M200RAN22-1** (200)

200

200~240

50/60

95/105

2800/3300

430/485

12.2/13.7

0.82/0.93

20.83/23.62

2/1

M200RAN22-1**

230

200~240

50/60

95/105

2800/3300

430/485

12.2/13.7

0.82/0.93

20.83/23.62

2/1

M200RAN22-2**

230

200~240

50/60

80/95

2400/2600

365/395

10.3/11.2

0.68/0.75

17.27/19.05

4/3

M200RAN22-3**

230

200~240

50/60

32/40

1600/1500

245/230

6.9/6.5

0.46/0.42

11.68/10.67

6/5

M200RAN22-4**

230

200~240

50/60

24/33

1200/1100

190/160

5.4/4.5

0.35/0.30

8.89/7.62

8/7

M200RAN22-1** (240)

240

200~260

50/60

95/105

2800/3300

430/485

12.2/13.7

0.82/0.93

20.83/23.62

2/1

M200RAN22-1/2**
dual speed

230

200~240

50/60

95/105
80/95

2800/3300
2400/2600

430/485
365/395

12.2/13.7
10.3/11.2

0.82/0.93
0.68/0.75

20.83/23.62
17.27/19.05

68
54

2/1
4/3

M200RAN22-3/4**
dual speed

230

200~240

50/60

32/40
24/33

1600/1500
1200/1100

245/230
190/160

6.9/6.5
5.4/4.5

0.46/0.42
0.35/0.30

11.68/10.67
8.89/7.62

43
35

6/5
8/7

M200RAN11/22-1**
dual voltage

115
230

100~120
200~240

50/60

95/105

2800/3300

430/485

12.2/13.7

0.82/0.93

20.83/23.62

2/1

M200RAN2-1**

12~14

50/60

95/105

2800/3300

430/485

12.2/13.7

0.82/0.93

20.83/23.62

2/1

M200RAN4-1**

24~28

50/60

95/105

2800/3300

430/485

12.2/13.7

0.82/0.93

20.83/23.62

2/1

M200RAN6-1**

28~34

50/60

95/105

2800/3300

430/485

12.2/13.7

0.82/0.93

20.83/23.62

2/1

M200RAN8-1**

48~58

50/60

95/105

2800/3300

430/485

12.2/13.7

0.82/0.93

20.83/23.62

2/1

M200RAN38-1**

380

380~420

50/60

95/105

2800/3300

430/485

12.2/13.7

0.82/0.93

20.83/23.62

2/1

M200RAN44-1**

440

440~480

50/60

95/105

2800/3300

430/485

12.2/13.7

0.82/0.93

20.83/23.62

2/1

** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
Sinwan reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%

Details

Data

Details


	Motor Type:	Capacitor induction, outer rotor, 1-phase

	Burnout Protection:	Thermal protector

	IP Protection:	IP56, IP68


	Frame:	Aluminum die cast, natural color(AN)

	Impeller:	7 blades, all metal

	Bearing:	Two ball bearings

	Rotation:	CCW seen on rotor

	Connection:	Wire lead or terminal flat pin connecting

	Weight:	2,100g


	Dielectric Strength:	Over 1 min. at 1,500 VAC, 0.5mA, 50/60 Hz

	Insulation Resistance:	Over 100 MΩ at DC 500V

	Signal Output:	Optional:R/D alarm output, tachometer output F/G


	Operating Temp:	Ambient non-condensing -30~+80C

	Storage Temp:	-40C~+100C (at 65%RH)

	Life Expectancy:	L10 50K hours at 55C
