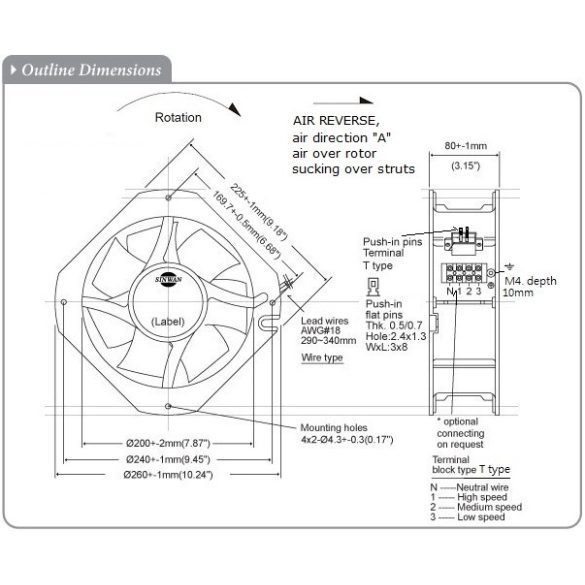

M225GAN (A)(HR) - Sinwan AC Metal Impeller, Reverse Airflow, ALARM, FG, Dia.225x240x80mm/8.9x9.5x3.1inch 620 CFM

Name: M225GAN (A)(HR) - Sinwan AC Metal Impeller, Reverse Airflow, ALARM, FG, Dia.225x240x80mm/8.9x9.5x3.1inch 620 CFM
SKU: M225GAN_A_HR

Rated
Volt

Voltage
Range

Freq

Input
Power

Ref.
Speed

Max.Airflow

Max.Static Pressure

Noise
Level

Model No

VAC

Watt

RPM

CFM

m3/min

Inch/H2O

db(A)

M225GAN11-1** (A)

115

100~120

50/60

60/80

2700/3100

540/620

15.3/17.6

0.8/0.74

20.32/18.8

2/1

M225GAN11-2** (A)

115

100~120

50/60

55/65

2300/2250

460/450

13/12.7

0.68/0.52

17.27/13.21

4/3

M225GAN11-3** (A)

115

100~120

50/60

20/30

1550/1650

310/330

8.8/9.3

0.38/0.31

9.65/7.87

6/5

M225GAN11-4** (A)

115

100~120

50/60

18/25

1200/1100

240/220

6.8/6.2

0.21/0.14

5.33/3.56

8/7

M225GAN11-1/2** (A)
(dual speed -1 & -2)

115

100~120

50/60

-1 60/80
-2 55/65

2700/3100
2300/2200

540/620
460/450

15.3/17.6
13/12.7

0.8/0.74
0.68/0.52

20.32/18.8
17.27/13.21

66
54

2/1
4/3

M225GAN11-3/4** (A)
(dual speed -3 & -4)

115

100~120

50/60

-1 20/30
-2 18/25

1550/1650
1200/1100

310/330
240/220

8.8/9.3
6.8/6.2

0.38/0.31
0.21/0.14

9.65/7.87
5.33/3.56

48
35

6/5
8/7

M225GAN22-1** (A)

230

200~240

50/60

60/80

2650/3000

540/620

15.3/17.6

0.8/0.74

20.32/18.8

2/1

M225GAN22-2** (A)

230

200~240

50/60

55/65

2300/2250

460/450

13/12.7

0.68/0.52

17.27/13.21

4/3

M225GAN22-3** (A)

230

200~240

50/60

20/30

1550/1650

310/330

8.8/9.3

0.38/0.31

9.65/7.87

6/5

M225GAN22-4** (A)

230

200~240

50/60

18/25

1200/1100

240/220

6.8/6.2

0.21/0.14

5.33/3.56

8/7

M225GAN22-1/2** (A)
(dual speed -1 & -2)

230

200~240

50/60

-1 60/80
-2 55/65

2700/3100
2300/2200

540/620
460/450

15.3/17.6
13/12.7

0.8/0.74
0.68/0.52

20.32/18.8
17.27/13.21

66
54

2/1
4/3

M225GAN22-3/4** (A)
(dual speed -3 & -4)

230

200~240

50/60

-3 20/30
-4 18/25

1550/1650
1200/1100

310/330
240/220

8.8/9.3
6.8/6.2

0.38/0.31
0.21/0.14

9.65/7.87
5.33/3.56

48
35

6/5
8/7

M225GAN8-1** (A)

48~58

50/60

60/80

2700/3100

540/620

15.3/17.6

0.8/0.74

20.32/18.8

2/1

M225GAN44-1** (A)(380)

380

380~440

50/60

60/80

2700/3100

540/620

15.3/17.6

0.8/0.74

20.32/18.8

2/1

M225GAN44-1** (A)(440)

440

380~440

50/60

60/80

2700/3100

540/620

15.3/17.6

0.8/0.74

20.32/18.8

2/1

** = "WB" for Wire lead type, Ball bearing. "TB" for push-in Terminal pin type, Ball bearing or Terminal block connecting with Ball bearing.
100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
Sinwan reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%

Details

Data

Details


	Motor Type:	Capacitor induction, outer rotor, 1-phase

	Burnout Protection:	Thermal protector

	IP Protection:	IP55, IP56, IP68


	Frame:	Aluminum die cast, natural color, or black

	Impeller:	9 blades, all meta

	Bearing:	Two ball bearings

	Rotation:	CCW seen on rotor. Reverse Airflow

	Connection:	Wire leads, or Terminal block connecting optional

	Weight:	2310g


	Dielectric Strength:	Over 1 min. at 1,500 VAC, 0.5mA, 50/60 Hz

	Insulation Resistance:	Over 100 MΩ at DC 500V

	Signal Output:	Optional:R/D alarm output, tachometer output F/G


	Operating Temp:	-30~+80C

	Storage Temp:	-40C~+100C

	Life Expectancy:	L10 45K hours at 55C
