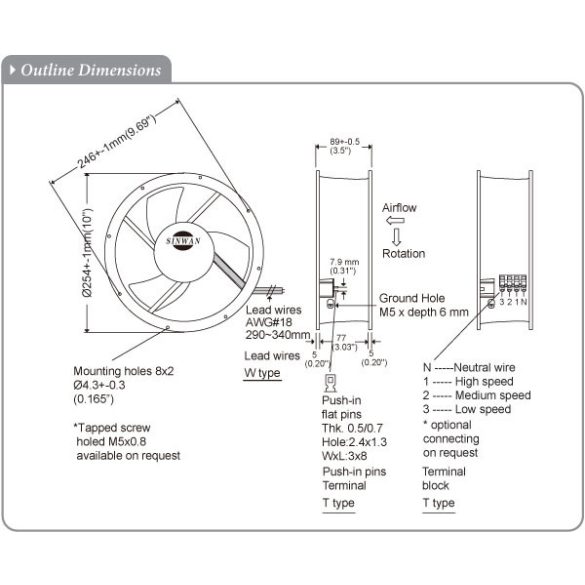

M254GAN (3)(HR) - Sinwan AC Metal Impeller, Reverse Airflow, Dia.254x89mm/10x3.5inch 930 CFM

Rated
Volt

Voltage
Range

Freq

Input
Power

Ref.
Speed

Max.Airflow

Max.Static Pressure

Noise
Level

Model No

VAC

Watt

RPM

CFM

m3/min

Inch/H2O

db(A)

M254GAN11-1** (3) (100)

100

100~120

50/60

95/105

2750/3250

800/930

22.7/26.3

0.96/1.07

24.38/27.18

2/1

M254GAN11-1** (3)

115

100~120

50/60

95/105

2800/3300

800/930

22.7/26.3

0.96/1.07

24.38/27.18

2/1

M254GAN11-2** (3)

115

100~120

50/60

80/95

2300/2250

670/615

19/17.4

0.25/0.20

6.35/5.08

4/3

M254GAN11-3** (3)

115

100~120

50/60

32/40

1500/1700

400/450

11.3/12.7

0.22/0.28

5.59/7.11

6/5

M254GAN11-4** (3)

115

100~120

50/60

24/33

1200/1100

370/340

10.5/9.6

0.18/0.15

4.57/3.81

8/7

M254GAN11-1/2** (3)
dual speed

115

100~120

50/60

-1 95/105
-2 80/95

2800/3300
2300/2250

800/930
670/615

22.7/26.3
19/17.4

0.96/1.07
0.25/0.20

24.38/27.18
6.35/5.08

66
53

2/1
4/3

M254GAN11-3/4** (3)
dual speed

115

100~120

50/60

-3 22/40
-4 24/33

1500/1700
1200/1100

400/450
370/340

11.3/12.7
10.5/9.6

0.22/0.28
0.18/0.15

5.59/7.11
4.57/3.81

48
35

6/5
8/7

M254GAN22-1** (3) (200)

200

200~240

50/60

95/105

2750/3250

800/930

22.7/26.3

0.89/1.10

22.61/27.94

2/1

M254GAN22-1** (3)

230

200~240

50/60

95/105

2800/3300

800/930

22.7/26.3

0.89/1.10

22.61/27.94

2/1

M254GAN22-2** (3)

230

200~240

50/60

80/95

2300/2250

670/615

19/17.4

0.25/0.20

6.35/5.08

4/3

M254GAN22-3** (3)

230

200~240

50/60

32/40

1500/1700

400/450

11.3/12.7

0.22/0.28

5.59/7.11

6/5

M254GAN22-4** (3)

230

200~240

50/60

24/33

1200/1250

370/385

10.5/10.9

0.18/0.15

4.57/3.81

8/7

M254GAN22-1/2** (3)
dual speed

230

200~240

50/60

-1 95/105
-2 80/95

2800/3300
2300/2250

800/930
670/615

22.7/26.3
19/17.4

0.96/1.07
0.25/0.20

24.38/27.18
6.35/5.08

66
53

2/1
4/3

M254GAN22-3/4** (3)
dual speed

230

200~240

50/60

-3 22/40
-4 24/33

1500/1700
1200/1100

400/450
370/340

11.3/12.7
10.5/9.6

0.22/0.28
0.18/0.15

5.59/7.11
4.57/3.81

48
35

6/5
8/7

M254GAN11/22-1** (3)
dual voltage

115
230

100~120
200~240

50/60

95/105

2800/3300

800/930

22.7/26.3

0.96/1.07

24.38/27.18

2/1

M254GAN8-1** (3)

48~58

50/60

95/105

2700/3200

790/920

22.4/26.1

0.96/1.07

24.38/27.18

2/1

M254GAN38-1** (3)

380

380~420

50/60

95/105

2800/3280

800/930

22.7/26.3

0.96/1.07

24.38/27.18

2/1

M254GAN44-1** (3)

440

440~480

50/60

95/105

2800/3280

800/930

22.7/26.3

0.96/1.07

24.38/27.18

2/1

** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
Sinwan reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%

Details

Info

Details


	Motor Type:	Capacitor induction, outer rotor, 1-phase

	Burnout Protection:	Thermal protector

	IP Protection:	IP56, IP68


	Frame:	Aluminum die cast, natural color(AN)

	Impeller:	3 blades, all metal

	Bearing:	Two ball bearings

	Rotation:	CCW seen on rotor

	Connection:	Wire lead or terminal flat pin connecting

	Weight:	2,350g (5.18Lbs)


	Dielectric Strength:	Over 1 min. at 1,500 VAC, 0.5mA, 50/60 Hz

	Insulation Resistance:	Over 100 MΩ at DC 500V

	Signal Output:	Optional:R/D alarm output, F/G tachometer output


	Operating Temp:	Ambient non-condensing -30~+80C

	Storage Temp:	-40C~+100C (at 65%RH)

	Life Expectancy:	L10 50K hours at 55C
