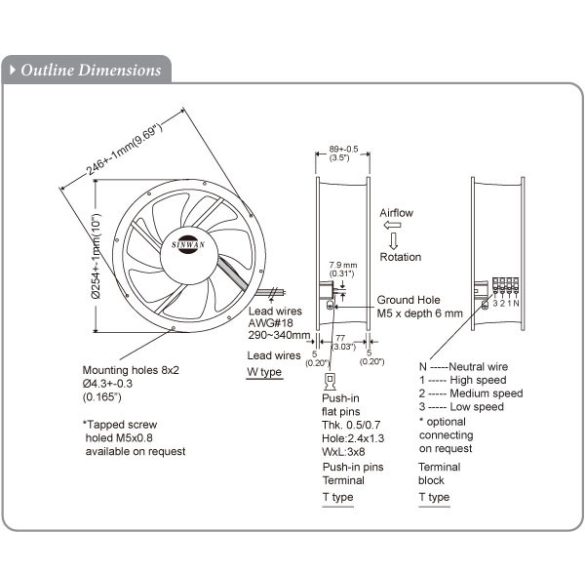

M254GAN (HR) - Sinwan AC Metal Impeller, Reverse Airflow, Dia.254x89mm/10x3.5inch 1,000 CFM

Rated
Volt

Voltage
Range

Freq

Input
Power

Ref.
Speed

Max.Airflow

Max.Static Pressure

Noise
Level

Model No

VAC

Watt

RPM

CFM

m3/min

Inch/H2O

db(A)

M254GAN11-1**

115

100~120

50/60

95/105

2800/3250

840/1000

23.8/28.3

0.78/0.60

19.81/15.24

2/1

M254GAN11-2**

115

100~120

50/60

80/95

2300/2200

660/620

18.7/17.6

0.33/0.27

8.38/6.86

4/3

M254GAN11-3**

115

100~120

50/60

32/40

1450/1700

485/570

13.7/16.1

0.25/0.20

6.35/5.08

6/5

M254GAN11-4**

115

100~120

50/60

24/33

1200/1100

420/370

11.9/10.5

0.18/0.14

4.57/3.56

8/7

M254GAN11-1/2**
dual speed

115

100~120

50/60

-1 95/105
-2 80/95

2800/3250
2300/2200

840/1000
660/620

23.8/28.3
18.7/17.6

0.78/0.60
0.33/0.27

19.81/15.24
8.38/6.86

70
63

2/1
4/3

M254GAN11-3/4**
dual speed

115

100~120

50/60

-3 32/40
-4 24/33

1600/1500
1200/1100

560/500
420/370

15.9/14.2
11.9/10.5

0.25/0.20
0.18/0.14

6.35/5.08
4.57/3.56

46
34

6/5
8/7

M254GAN22-1**

230

200~240

50/60

95/105

2750/3250

840/1000

23.8/28.3

0.78/0.60

19.81/15.24

2/1

M254GAN22-2**

230

200~240

50/60

80/95

2300/2200

660/620

18.7/17.6

0.33/0.27

8.38/6.86

4/3

M254GAN22-3**

230

200~240

50/60

32/40

1450/1700

485/570

13.7/16.1

0.25/0.20

6.35/5.08

6/5

M254GAN22-4**

230

200~240

50/60

24/33

1200/1100

420/370

11.9/10.5

0.18/0.14

4.57/3.56

8/7

M254GAN22-1/2**
dual speed

230

200~240

50/60

-1 95/105
-2 80/95

2800/3250
2400/2300

840/1000
738/708

23.8/28.3
20.9/20

0.78/0.60
0.33/0.27

19.81/15.24
8.38/6.86

70
63

2/1
4/3

M254GAN22-3/4**
dual speed

230

200~240

50/60

-3 32/40
-4 24/33

1600/1500
1200/1100

560/500
420/370

15.9/14.2
11.9/10.5

0.25/0.20
0.18/0.14

6.35/5.08
4.57/3.56

46
34

6/5
8/7

M254GAN11/22-1**
dual voltage

115
230

100~120
200~240

50/60

95/105

2750/3250

840/1000

23.8/28.3

1.05/1.15

26.67/29.21

2/1

M254GAN8-1**

48~58

50/60

95/105

2800/3200

830/1000

23.5/28.3

0.78/0.60

19.81/15.24

2/1

M254GAN38-1**

380

380~420

50/60

95/105

2800/3250

840/1000

23.8/28.3

0.78/0.60

19.81/15.24

2/1

M254GAN44-1**

440

440~480

50/60

95/105

2800/3250

840/1000

23.8/28.3

0.78/0.60

19.81/15.24

2/1

** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
Sinwan reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%

Ask about it

Details

Info

Details


	Motor Type:	Capacitor induction, outer rotor, 1-phase

	Burnout Protection:	Thermally protected

	IP Protection:	IP56, IP68


	Frame:	Aluminum die cast, natural color

	Impeller:	7 blades, all metal

	Bearing:	Two ball bearings

	Rotation:	CCW seen on rotor

	Connection:	Wire lead or terminal flat pin connecting

	Weight:	2,550 g (5.6Lbs)


	Dielectric Strength:	Over 1 min. at 1,500 VAC, 0.5mA, 50/60Hz

	Insulation Resistance:	Over 100 MΩ at DC 500V

	Signal Output:	Optional:R/D alarm output, F/G tachometer output


	Operating Temp:	Ambient non-condensing -30~+80C

	Storage Temp:	-40C~+100C (at 65%RH)

	Life Expectancy:	L10 50K hours at 55C
