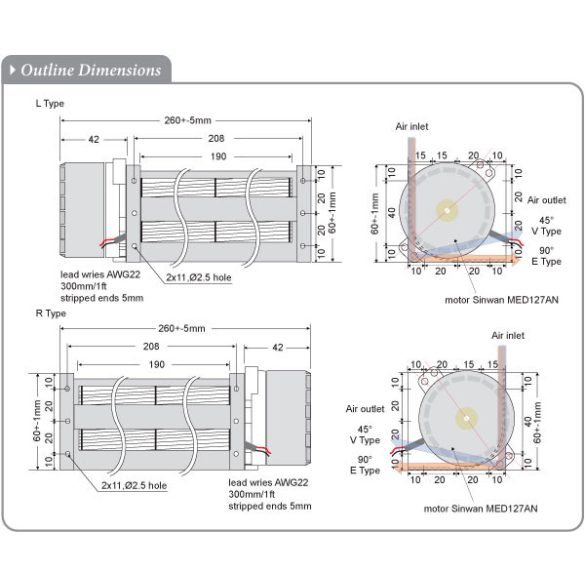

MCD419SP - Sinwan DC Crossflow fan, Dia. Φ40xL.190x260x60mm 80~60 CFM


	Motor Type:	Sinwan Brushless DC Motor MED127AN

	Burnout Protection:	Electronically protected, polarity & locked rotor protection

	IP Protection:	IP ratings on request

	Frame:	Steel plate housing and frame black coating

	Impeller:	Aluminum alloy fan blades with natural treatment cosmetics

	Bearing:	3 high precision permanently lubricated ball bearings

	Rotation:	Motor at right side (R type), left (L type) for choice, viewed from air outlet

	Connection:	Wire leads, or terminal block connecting for choice

	Weight:	480+-30Gm(1.06Lbs)

	Dielectric Strength:	500 VAC/min. Max leakage 0.5mA

	Speed Control:	Optional: PWM, S/C NTC thermister

	Signal Output:	Optional: R/D alarm output, F/G Tachometer output

	Operating Temp:	-20C~+65C

	Storage Temp:	-20C~+75C (at 65%RH)

	Life Expectancy:	L10 40K hours at 45℃, 20K hours at 65℃

Details

Info

Details

Rated Volt	Voltage Range	Input Power	Rated Current	Ref. Speed	Max.Airflow		Max.Static Pressure		Noise Level	PQ Curves
Model No	VDC	VDC	Watt	Amp	RPM	CFM	m3/min	Inch/H2O	mm	db(A)
MCD419SP-12H(**#)	12	9~13.8	13	1.1	4100	79	2.2	0.24	6.1	43	H
MCD419SP-12M(**#)	12	9~13.8	9	0.75	3200	68	1.9	0.21	5.33	39	M
MCD419SP-24H(**#)	24	12~27.6	12.5	0.52	4140	80	2.3	0.25	6.35	44	H
MCD419SP-24M(**#)	24	12~27.6	8.0	0.33	3300	70	2	0.22	5.59	41	M
MCD419SP-48H(**#)	48	38~55	12	0.25	4200	82	2.3	0.26	6.6	44	H
MCD419SP-48M(**#)	48	38~55	8	0.17	3300	70	2	0.22	5.59	41	M

= "WB" for wire lead type Ball bearing, or "TB" for terminal block with Ball bearing (*#) = (RENON),(LESGN),(RESG F/G)...designation of motor,air outlet,motor grill & fan blades guard 1st = R, L, C - Motor position right or left, seen from air outlet. 2nd* = E, V, Q, H - Air outlet direction. 3rd* = S, N - Shield for motor protection. 4th* = G, O - Grill guard for fan blades # = R/D, F/G, S/C, P/W, S/V, N. Designation of motor functions. Alarm-R/D, Tach-F/G, Thermal-S/C, PWM-P/W, none function-N Click nomenclature for full model numbers Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%

http://sinwan.eu

Info

Article No.

MCD419SP
