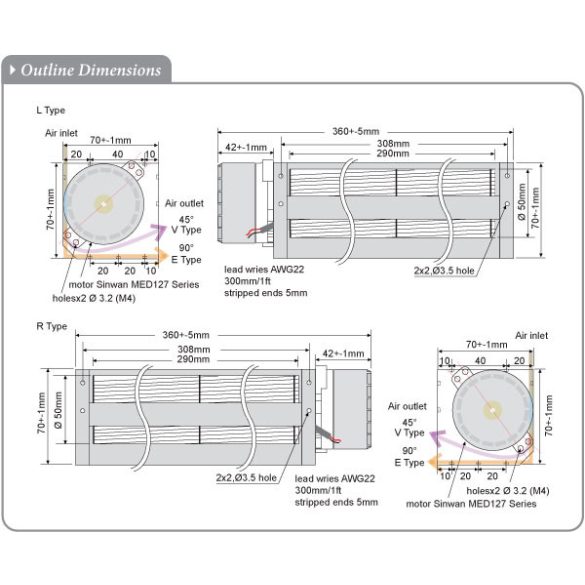

MCD529SP - Sinwan DC Crossflow fan, Dia. Φ50xL.290x360x70mm 107~60 CFM


	Motor Type:	Sinwan Brushless DC Motor MED127AN

	Burnout Protection:	Electronically protected, polarity & locked rotor protection

	IP Protection:	IP ratings on request

	Frame:	Steel plate housing and frame black coating

	Impeller:	Aluminum alloy fan blades with natural treatment cosmetics

	Bearing:	3 high precision permanently lubricated ball bearings

	Rotation:	Motor at right side (R type), left (L type) for choice, viewed from air outlet

	Connection:	Wire leads, or terminal block connecting for choice

	Weight:	680g (1.5Lbs)

	Dielectric Strength:	500 VAC/min. Max leakage 0.5mA

	Speed Control:	Optional: PWM, S/C NTC thermister

	Signal Output:	Optional: RD Rotation Detactor, FG Frequency Generator

	Operating Temp:	-20C~+65C

	Storage Temp:	-20C~+75C (at 65%RH)

	Life Expectancy:	L10 40K hours at 45℃, 20K hours at 65℃

Details

Info

Details

Rated Volt	Voltage Range	Input Power	Rated Current	Ref. Speed	Max.Airflow		Max.Static Pressure		Noise Level	PQ Curves
Model No	VDC	VDC	Watt	Amp	RPM	CFM	m3/min	Inch/H2O	mm	db(A)
MCD529SP-12H (**#)	12	12~13.8	10.6	0.88	2100	105	3	0.14	3.56	44
MCD529SP-12M (**#)	12	12~13.8	6	0.5	1400	86	2.4	0.11	2.79	35
MCD529SP-12L (**#)	12	12~13.8	4.8	0.4	1000	60	1.7	0.05	1.27	26
MCD529SP-24H (**#)	24	15~26	11.7	0.49	2200	107	3	0.14	3.56	45
MCD529SP-24M (**#)	24	15~26	5.5	0.23	1400	86	2.4	0.11	2.79	35
MCD529SP-24L (**#)	24	15~26	4.8	0.2	1000	60	1.7	0.05	1.27	26
MCD529SP-48H (**#)	48	28~55	10.6	0.22	2200	107	3	0.14	3.56	45
MCD529SP-48M (**#)	48	28~55	5.5	0.10	1400	86	2.4	0.11	2.79	35
MCD529SP-48L (**#)	48	28~55	4.6	0.08	1000	60	1.7	0.05	1.27	26

= "WB" for wire lead type Ball bearing, or "TB" for terminal block type Ball bearing (*#) = (RENON),(LESGN),(RESG F/G), .... 1st = R, L, C - Motor position 2nd* = E, V, Q, H - Air outlet direction 3rd* = S, N - Shield Guard for motor 4th* = G, O - Grill Guard for Impeller # = R/D, F/G, S/C, P/W, S/V, N - Motor Function, N = none, normal motor Please click Nomenclature to have full & clear model No. Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%

http://sinwan.eu

Info

Article No.

MCD529SP
