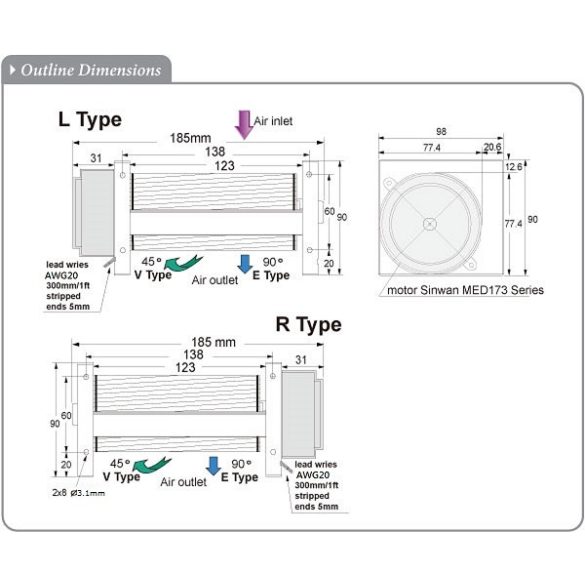

MCD612SP - Sinwan DC Crossflow fan, Dia. Φ60xL.120x185x90mm 84~51 CFM


	Motor Type:	Sinwan Brushless DC Motor MED173AN

	Burnout Protection:	Electronically protected, polarity & locked rotor protection

	IP Protection:	IP ratings on request

	Frame:	Steel plate housing and frame, black coating

	Impeller:	Aluminum alloy fan blades

	Bearing:	3 high precision permanently lubricated ball bearings

	Rotation:	Motor at right side (R type), left (L type) for choice, viewed from air outlet

	Connection:	Wire leads * Leads with terminal block on request

	Weight:	945g (2.1Lbs)

	Dielectric Strength:	500 VAC/min. Max leakage 0.5mA

	Speed Control:	Optional: PWM, S/C NTC thermister

	Signal Output:	Optional: R/D alarm output, F/G Tachometer output

	Operating Temp:	-20C~+65C

	Storage Temp:	-20C~+75C (at 65%RH)

	Life Expectancy:	L10 50K hours at 45℃, 30K hours at 60℃

Details

Info

Details

Rated Volt	Voltage Range	Input Power	Rated Current	Ref. Speed	Max.Airflow		Max.Static Pressure		Noise Level	PQ Curves
Model No	VDC	VDC	Watt	Amp	RPM	CFM	m3/min	Inch/H2O	mm	db(A)
MCD612SP-12H (**#)	12	8~13.8	16	1.4	2800	84	2.4	0.13	3.3	43
MCD612SP-12M (**#)	12	8~13.8	11	0.92	2200	65	1.8	0.11	2.79	33
MCD612SP-12L (**#)	12	8~14	8	0.67	1500	51	1.4	0.07	1.78	27
MCD612SP-24H (**#)	24	15~27	14	0.59	2800	84	2.4	0.13	3.3	43
MCD612SP-24M (**#)	24	15~27.6	11	0.46	2200	65	1.8	0.11	2.79	33
MCD612SP-24L (**#)	24	15~27.6	8	0.34	1500	51	1.4	0.07	1.78	27
MCD612SP-48H (**#)	48	20~55	14	0.29	2800	84	2.4	0.13	3.3	43
MCD612SP-48M (**#)	48	20~56	11	0.23	2200	65	1.8	0.11	2.79	33
MCD612SP-48L (**#)	48	22~56	8	0.17	1500	51	1.4	0.07	1.78	27

= "WB" for wire lead type Ball bearing, or "TB" for terminal block type Ball bearing (*#) = (RENON),(LESGN),(RESG F/G), .... 1st = R, L, C - Motor position 2nd* = E, V, Q, H - Air outlet direction 3rd* = S, N - Shield Guard for motor 4th* = G, O - Grill Guard for Impeller # = R/D, F/G, S/C, P/W, S/V, N - Motor Function, N = none, normal motor Please click Nomenclature to have full & clear model No. Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
