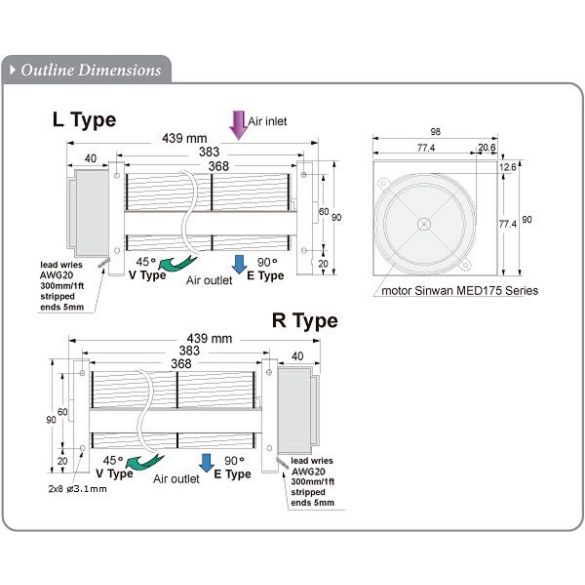

MCD636SP - Sinwan DC Crossflow fan, Dia. Φ60xL.360x439x90mm 275~120 CFM


	Motor Type:	Sinwan Brushless DC Motor MED175AN

	Burnout Protection:	Electronically protected, polarity & locked rotor protection

	IP Protection:	IP ratings on request

	Frame:	Steel plate housing and frame, black coating

	Impeller:	Aluminum alloy fan blades

	Bearing:	3 high precision permanently lubricated ball bearings

	Rotation:	Motor at right side (R type), left (L type) for choice, viewed from air outlet

	Connection:	Wire leads * Leads with terminal block on request

	Weight:	1,460g (4.70LbS)

	Dielectric Strength:	500 VAC/min. Max leakage 0.5mA

	Speed Control:	Optional: PWM, S/C NTC thermister

	Signal Output:	Optional: RD Rotation Detactor, FG Frequency Generator

	Operating Temp:	-20C~+65C

	Storage Temp:	-20C~+75C (at 65%RH)

	Life Expectancy:	L10 50K hours at 45℃, 30K hours at 60℃

Details

Info

Details

Rated Volt	Voltage Range	Input Power	Rated Current	Ref. Speed	Max.Airflow		Max.Static Pressure		Noise Level	PQ Curves
Model No	VDC	VDC	Watt	Amp	RPM	CFM	m3/min	Inch/H2O	mm	db(A)
MCD636SP-12HH (**#)	12	8~13.8	50.4~55	4.2~4.6	3100	270	7.6	0.43	10.92	61
MCD636SP-12H (**#)	12	8~13.8	31	2.67	2700	230	6.5	0.41	10.41	46
MCD636SP-12M (**#)	12	8~13.8	25	2.1	2200	177	5	0.29	7.37	36
MCD636SP-12L (**#)	12	8~14	20	1.67	1500	120	3.4	0.14	3.56	27
MCD636SP-24HH (**#)	24	15~27.6	50.4~55	2.1~2.3	3200	275	7.8	0.44	11.18	61
MCD636SP-24H (**#)	24	15~27.6	31	1.29	2800	240	6.8	0.41	10.41	46
MCD636SP-24M (**#)	24	15~27.6	25	1.04	2200	177	5	0.29	7.37	36
MCD636SP-24L (**#)	24	15~27.6	20	0.83	1500	120	3.4	0.14	3.56	27
MCD636SP-48HH (**#)	48	22~56	50.4~55	1.1~1.2	3200	275	7.8	0.44	11.18	61
MCD636SP-48H (**#)	48	22~56	31	0.64	2800	240	6.8	0.41	10.41	46
MCD636SP-48M (**#)	48	22~56	25	0.52	2200	177	5	0.29	7.37	36
MCD636SP-48L (**#)	48	22~56	20	0.42	1500	120	3.4	0.14	3.56	27

= "WB" for wire lead type Ball bearing, or "TB" for terminal block type Ball bearing (*#) = (RENON),(LESGN),(RESG F/G), .... 1st = R, L, C - Motor position 2nd* = E, V, Q, H - Air outlet direction 3rd* = S, N - Shield Guard for motor 4th* = G, O - Grill Guard for Impeller # = R/D, F/G, S/C, P/W, S/V, N - Motor Function, N = none, normal motor Please click Nomenclature to have full & clear model No. Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
