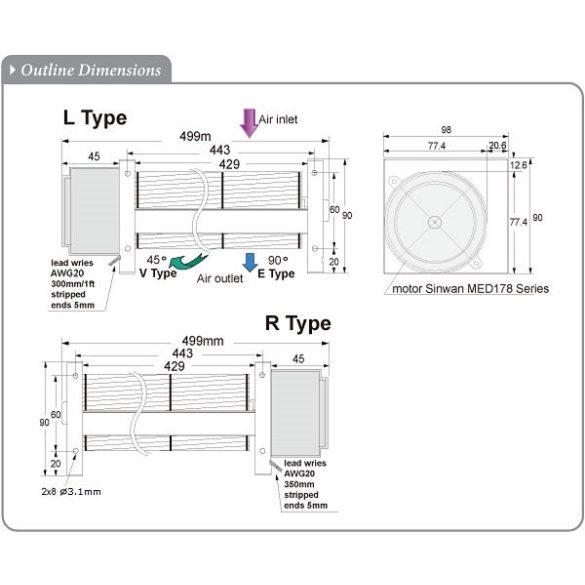

MCD642SP - Sinwan DC Crossflow fan, Dia. Φ60xL.420x499x90mm 298~153CFM


	Motor Type:	Sinwan Brushless DC Motor MED178AN

	Burnout Protection:	Electronically protected, polarity & locked rotor protection

	IP Protection:	IP ratings on request

	Frame:	Steel plate housing and frame, black coating

	Impeller:	Aluminum alloy fan blades

	Bearing:	3 high precision permanently lubricated ball bearings

	Rotation:	Motor at right side (R type), left (L type) for choice, viewed from air outlet

	Connection:	Wire leads * Leads with terminal block on request

	Weight:	1,400g (3.08Lbs)

	Dielectric Strength:	500 VAC/min. Max leakage 0.5mA

	Speed Control:	Optional: PWM, S/C NTC thermister

	Signal Output:	Optional: RD Rotation Detactor, FG Frequency Generator

	Operating Temp:	-20C~+65C

	Storage Temp:	-20C~+75C (at 65%RH)

	Life Expectancy:	L10 50K hours at 45℃, 30K hours at 60℃

Details

Info

Details

Rated Volt	Voltage Range	Input Power	Rated Current	Ref. Speed	Max.Airflow		Max.Static Pressure		Noise Level	PQ Curves
Model No	VDC	VDC	Watt	Amp	RPM	CFM	m3/min	Inch/H2O	mm	db(A)
MCD642SP-12HH (**#)	12	8~13.8	54	4.5	3200	295	8.4	0.25	6.35	64
MCD642SP-12H (**#)	12	8~13.8	32	2.67	2600	260	7.4	0.21	5.33	53
MCD642SP-12M (**#)	12	8~13.8	21	1.75	2000	195	5.5	0.17	4.32	41
MCD642SP-12L (**#)	12	8~13.8	16	1.33	1500	153	4.3	0.13	3.3	35
MCD642SP-24HH (**#)	24	15~27.6	60.2	2.51	3200	295	8.4	0.25	6.35	64
MCD642SP-24H (**#)	24	15~27.6	30	1.25	2600	260	7.4	0.21	5.33	53
MCD642SP-24M (**#)	24	15~27.6	21	0.88	2000	195	5.5	0.18	4.57	41
MCD642SP-24L (**#)	24	15~27.6	16	0.67	1500	153	4.3	0.13	3.3	35
MCD642SP-48HH (**#)	48	28~53	55	1.15	3200	296	8.4	0.27	6.86	64
MCD642SP-48H (**#)	48	28~53	30	0.62	2650	263	7.4	0.23	5.84	53
MCD642SP-48M (**#)	48	28~55	21	0.44	2000	195	5.5	0.18	4.57	41
MCD642SP-48L (**#)	48	28~55	16	0.33	1500	153	4.3	0.13	3.3	35

= "WB" for wire lead type Ball bearing, or "TB" for terminal block type Ball bearing (*#) = (RENON),(LESGN),(RESG F/G), .... 1st = R, L, C - Motor position 2nd* = E, V, Q, H - Air outlet direction 3rd* = S, N - Shield Guard for motor 4th* = G, O - Grill Guard for Impeller # = R/D, F/G, S/C, P/W, S/V, N - Motor Function, N = none, normal motor Please click Nomenclature to have full & clear model No. Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%

http://sinwan.eu

Info

Article No.

MCD642SP
