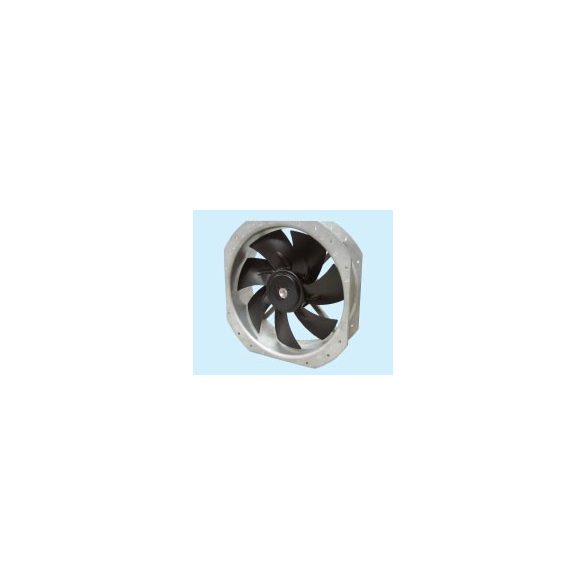

MD280GAN - Sinwan DC Fan Dia.280x280x88.9mm / 11x3.5inch 1200~780 CFM

MD280GAN - Sinwan DC Fan Dia.280x280x88.9mm / 11x3.5inch 1200~780 CFM
  Motor Type: Microprocessor brushless DC Motor, auto cutoff, auto restart
  Burnout Protection: Electronically protected, polarity protected
  IP Protection: IP55,56 optional request
  Frame: Aluminum die cast, natural color(AN)
  Impeller: 7 blades, all metal
  Bearing: Two ball bearings
  Rotation: CCW seen on rotor
  Connection: Wire lead or terminal flat pin connecting
  Weight: 2,950g (6.5 Lbs)
  Dielectric Strength: 500 VAC/min. Max leakage 0.5mA
  Speed Control: Optional:PWM, S/C NTC thermister, S/V (0~10V) speed control on request
  Signal Output: Optional:R/D alarm output, tachometer output
  Operating Temp: -20C~+65C
  Storage Temp: -20C~+75C (at 65%RH)
  Life Expectancy: L10 50K hours at 50C
To Favourites
Recommend
Print
Question about the product
Ask about it
Details
Info
Details
Rated
Volt		 Voltage
Range

Input
Power

 Rated
Current		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Curves		 UL
Model No VDC VDC Watt Amp RPM CFM m3/min Inch/H2O mm db(A)
MD280GAN-12M** 12 9~13.5 90 7.5 2100 1011 28.6 0.63 16 55 M R
MD280GAN-12L** 12 9~13.5 50 4.2 1800 867 24.6 0.55 13.97 48 L R
MD280GAN-24H** 24 18~27.6 104.4 4.35 2450 1180 33.4 0.90 22.86 72 H R
MD280GAN-24M** 24 18~27.6 58.8 2.45 2200 1060 30 0.65 16.51 56 M R
MD280GAN-24L** 24 18~27.6 26.4(~52.8) 1.1(~2.2) 1800 867 24.6 0.55 13.97 48 L R
MD280GAN-48H** 48 24~55 105.6 2.2 2450 1180 33.4 0.90 22.86 72 H R
MD280GAN-48M** 48 24~55 57.6 1.2 2200 1060 30 0.65 16.51 56 M R
MD280GAN-48L** 48 24~55 26.4 0.55 1500 722 20.4 0.50 12.7 48 L R
  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
  • Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
