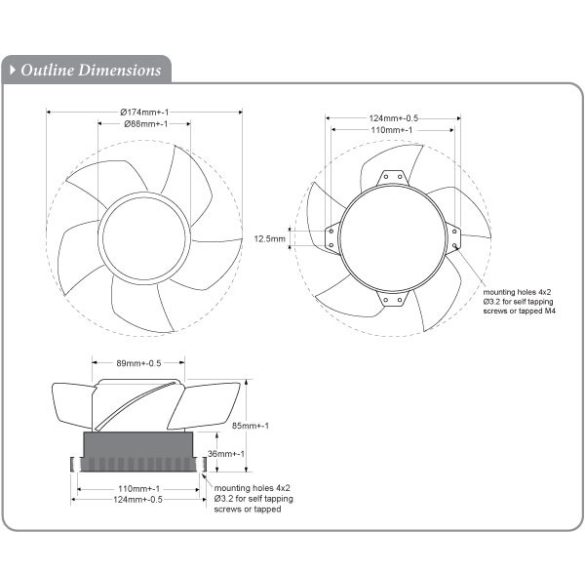

MDK200RAN - Sinwan DC Sketeton Dia.174x85mm / 6.9inch 610~350 CFM

MDK200RAN - Sinwan DC Sketeton Dia.174x85mm / 6.9inch 610~350 CFM
MDK200RAN - Sinwan DC Sketeton Dia.174x85mm / 6.9inch 610~350 CFM
MDK200RAN - Sinwan DC Sketeton Dia.174x85mm / 6.9inch 610~350 CFM
MDK200RAN - Sinwan DC Sketeton Dia.174x85mm / 6.9inch 610~350 CFM
  Rated
Volt		 Voltage
Range

Input
Power

 Rated
Current		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Curves
Model No VDC VDC Watt Amp RPM CFM m3/min Inch/H2O mm db(A)
MDK200RAN-12SH** 12 9~13.6 64.8 5.4 3000 610 17.3 1.08 27.43 -
MDK200RAN-12HH** 12 9~13.6 50.4 4.2 2700 560 15.9 0.99 25.15 -
MDK200RAN-12H** 12 9~13.6 23 1.9 2300 490 13.9 0.94 23.88 -
MDK200RAN-12M** 12 9~13.6 13.2 1.1 1800 410 11.6 0.88 22.35 -
MDK200RAN-12L** 12 9~14 5.5 0.45 1500 350 9.9 0.66 16.76 -
MDK200RAN-24SH** 24 16~27.6 63.6 2.65 3100 610 17.3 1.08 27.43 -
MDK200RAN-24HH** 24 16~27.6 50.4 2.1 2700 560 15.9 0.99 25.15 -
MDK200RAN-24H** 24 16~27.6 24 0.97 2300 490 13.9 0.94 23.88 -
MDK200RAN-24M** 24 16~27.6 13 0.52 1800 410 11.6 0.88 22.35 -
MDK200RAN-24L** 24 16~28 5 0.2 1500 350 9.9 0.66 16.76 -
MDK200RAN-48SH** 48 30~53 62.4 1.3 3100 610 17.3 1.08 27.43 -
MDK200RAN-48HH** 48 30~53 49.4 1.03 2700 560 15.9 0.99 25.15 -
MDK200RAN-48H** 48 30~56 23.5 0.48 2300 490 13.9 0.94 23.88 -
MDK200RAN-48M** 48 30~56 14.5 0.3 1800 410 11.6 0.88 22.35 -
MDK200RAN-48L** 48 32~63 5.8 0.12 1500 350 9.9 0.66 16.76 -
  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
  • Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
To Favourites
Recommend
Print
Question about the product
Details
Info
Details
  Motor Type: Microprocessor brushless DC Motor, auto cutoff, auto restart
  Burnout Protection: Electronically protected, polarity protected
  IP Protection: IP55, IP67 (Optional)
  Frame: Aluminum die cast, natural color(AN)
  Impeller: Steel-sheet metal fan blades, integrantly spot welded onto rotor
  Bearing: Two ball bearings
  Rotation: CCW seen on rotor
  Connection: Wire lead or terminal flat pin connecting
  Weight: -
  Dielectric Strength: 500 VAC/min. Max leakage 0.5mA
  Speed Control: Optional: PWM, S/C NTC thermister
  Signal Output: Optional: RD Rotation Detactor, FG Frequency Generator
  Operating Temp: -20C~+65C
  Storage Temp: -20C~+75C (at 65%RH)
  Life Expectancy: L10 90K hours at 35C, 40K hours at 60C

http://sinwan.eu

Info
Article No.
MDK200RAN
