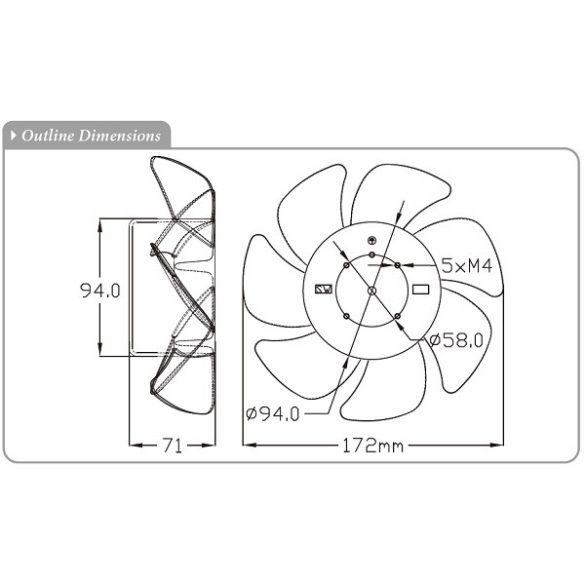

MK200FAP (HR) - Sinwan AC Skeleton Fan, Metal Impeller, Dia.172x71mm / 6.8inch 485~160 CFM

MK200FAP (HR) - Sinwan AC Skeleton Fan, Metal Impeller, Dia.172x71mm / 6.8inch 485~160 CFM
MK200FAP (HR) - Sinwan AC Skeleton Fan, Metal Impeller, Dia.172x71mm / 6.8inch 485~160 CFM
MK200FAP (HR) - Sinwan AC Skeleton Fan, Metal Impeller, Dia.172x71mm / 6.8inch 485~160 CFM
MK200FAP (HR) - Sinwan AC Skeleton Fan, Metal Impeller, Dia.172x71mm / 6.8inch 485~160 CFM
Rated
Volt		 Voltage
Range		 Freq Input
Power		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Model No VAC VAC Hz Watt

RPM

 CFM m3/min Inch/H2O mm db(A)
MK200FAP11-1** 115 100~120 50/60 60/80 2800/3300 430/485 12.2/13.7 0.82/0.93 20.83/23.62 66 2/1
MK200FAP11-2** 115 100~120 50/60 55/65 2400/2600 365/395 10.3/11.2 0.68/0.75 17.27/19.05 52 4/3
MK200FAP11-3** 115 100~120 50/60 20/30 1600/1500 245/230 6.9/6.5 0.46/0.42 11.68/10.67 43 6/5
MK200FAP11-4** 115 100~120 50/60 18/25 1200/1100 190/160 5.4/4.5 0.35/0.30 8.89/7.62 35 8/7
MK200FAP11-1/2**
Dual speed		 115 100~120 50/60 60/80
55/65		 2800/3300
2400/2600		 430/485
365/395		 12.2/13.7
10.3/11.2		 0.82/0.93
0.68/0.75		 20.83/23.62
17.27/19.05		 66
52		 2/1
4/3
MK200FAP11-3/4**
Dual speed		 115 100~120 50/60 20/30
18/25		 1600/1500
1200/1100		 245/230
190/160		 6.9/6.5
5.4/4.5		 0.46/0.42
0.35/0.30		 11.68/10.67
8.89/7.62		 43
35		 6/5
8/7
MK200FAP22-1** 230 200~240 50/60 60/80 2800/3300 430/485 12.2/13.7 0.82/0.93 20.83/23.62 66 2/1
MK200FAP22-2** 230 200~240 50/60 55/65 2400/2600 365/395 10.3/11.2 0.68/0.75 17.27/19.05 52 4/3
MK200FAP22-3** 230 200~240 50/60 20/30 1600/1500 245/230 6.9/6.5 0.46/0.42 11.68/10.67 43 6/5
MK200FAP22-4** 230 200~240 50/60 18/25 1200/1100 190/160 5.4/4.5 0.35/0.30 8.89/7.62 35 8/7
MK200FAP22-1/2**
Dual speed		 230 200~240 50/60 60/80
55/65		 2800/3300
2400/2600		 430/485
365/395		 12.2/13.7
10.3/11.2		 0.82/0.93
0.68/0.75		 20.83/23.62
17.27/19.05		 66
52		 2/1
4/3
MK200FAP22-3/4**
Dual speed		 230 200~240 50/60 20/30
18/25		 1600/1500
1200/1100		 245/230
190/160		 6.9/6.5
5.4/4.5		 0.46/0.42
0.35/0.30		 11.68/10.67
8.89/7.62		 43
35		 6/5
8/7
  • The stated airflow, air pressure, noise levels are measured with housing orifice dia.: impeller Φ +1~1.5mm, at distance: approx. height of impeller + motor frame. The optimal operating data can only be depended on the installation conditions.
  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
  • 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
  • Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
  • Sinwan reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%
To Favourites
Recommend
Print
Question about the product
Details
Info
Details
  Motor Type: Capacitor Induction, Outer rotor, 2 or 4 pole
  Burnout Protection: Thermally protected
  IP Protection: IP56
  Frame: Aluminum die cast, black cosmetics
  Impeller: Steel-sheet metal fan blades, integrantly spot welded onto ortor
  Bearing: Two ball bearings
  Rotation: CCW seen on rotor
  Connection: Wire leads
  Weight: -
  Dielectric Strength: Over 1 min.at 1,500 VAC, 0.5mA, 50/60Hz
  Insulation Resistance: Over 100 MΩ at DC 500V
  Signal Output: Optional: R/D alarm output, F/G Tachometer output
  Operating Temp: -30C~+80C
  Storage Temp: -40C~+100C
  Life Expectancy: L10 80K hours at 45C, 50K hours at 55C

http://sinwan.eu

Info
Article No.
MK200FAP_HR
