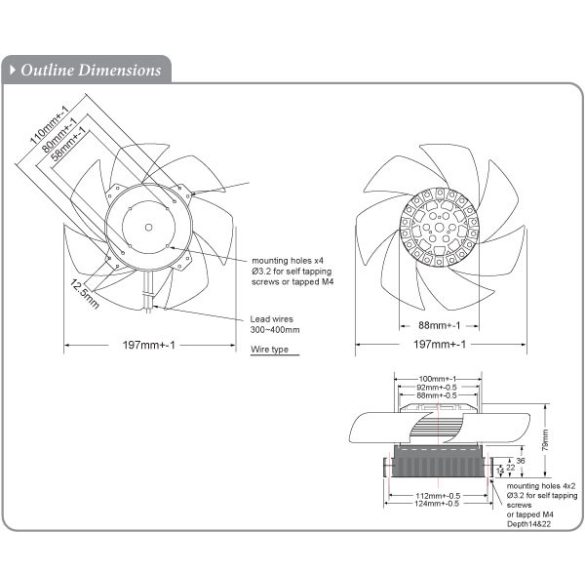

MK205AN (HR) - Sinwan AC Skeleton Fan, Metal Impeller, Dia.197x79mm / 7.8inch 630~220 CFM

MK205AN (HR) - Sinwan AC Skeleton Fan, Metal Impeller, Dia.197x79mm / 7.8inch 630~220 CFM
MK205AN (HR) - Sinwan AC Skeleton Fan, Metal Impeller, Dia.197x79mm / 7.8inch 630~220 CFM
MK205AN (HR) - Sinwan AC Skeleton Fan, Metal Impeller, Dia.197x79mm / 7.8inch 630~220 CFM
MK205AN (HR) - Sinwan AC Skeleton Fan, Metal Impeller, Dia.197x79mm / 7.8inch 630~220 CFM
Rated
Volt		 Voltage
Range		 Freq Input
Power		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Model No VAC VAC Hz Watt

RPM

 CFM m3/min Inch/H2O mm db(A)
MK205AN11-1** 115 100~120 50/60 95/105 2800/3150 560/630 15.9/17.8 1.05/1.08 26.67/27.43 68 2/1
MK205AN11-2** 115 100~120 50/60 55/65 2300/2250 450/465 12.7/13.2 0.69/0.52 17.53/13.21 57 4/3
MK205AN11-3** 115 100~120 50/60 32/40 1500/1600 310/325 8.8/9.2 0.38/0.29 9.65/7.37 48 6/5
MK205AN11-4** 115 100~120 50/60 24/33 1200/1100 240/220 6.8/6.2 0.21/0.14 5.33/3.56 35 8/7
MK205AN11-1/2**
Dual speed		 115 100~120 50/60 95/105
55/65		 2800/3150
2300/2250		 560/630
450/465		 15.9/17.8
12.7/13.2		 1.05/1.08
0.69/0.52		 26.67/27.43
17.53/13.21		 68
57
MK205AN11-3/4**
Dual speed		 115 100~120 50/60 32/40
24/33		 1500/1600
1200/1100		 310/325
240/220		 8.8/9.2
6.8/6.2		 0.38/0.29
0.21/0.14		 9.65/7.37
5.33/3.56		 48
35
MK205AN22-1** 230 200~240 50/60 95/105 2800/3150 560/630 15.9/17.8 1.05/1.08 26.67/27.43 68 2/1
MK205AN22-2** 230 200~240 50/60 55/65 2300/2250 450/465 12.7/13.2 0.69/0.52 17.53/13.21 57 4/3
MK205AN22-3** 230 200~240 50/60 32/40 1500/1600 310/325 8.8/9.2 0.38/0.29 9.65/7.37 48 6/5
MK205AN22-4** 230 200~240 50/60 24/33 1200/1100 240/220 6.8/6.2 0.21/0.14 5.33/3.56 35 8/7
MK205AN22-1/2**
Dual speed		 230 200~240 50/60 95/105
55/65		 2800/3150
2300/2250		 560/630
450/465		 15.9/17.8
12.7/13.2		 1.05/1.08
0.69/0.52		 26.67/27.43
17.53/13.21		 68
57
MK205AN22-3/4**
Dual speed		 230 200~240 50/60 32/40
24/33		 1500/1600
1200/1100		 310/325
240/220		 8.8/9.2
6.8/6.2		 0.47/0.28
0.38/0.17		 11.94/7.11
9.65/4.32		 35
35
MK205AN38-1** 380 380~420 50/60 95/105 2800/3150 560/630 15.9/17.8 1.05/1.08 26.67/27.43 68 2/1
MK205AN44-1** 440 440~480 50/60 95/105 2800/3150 560/630 15.9/17.8 1.05/1.08 26.67/27.43 68 2/1
  • The stated airflow, air pressure, noise levels are measured with housing orifice dia.: impeller Φ +1~1.5mm, at distance: approx. height of impeller + motor frame. The optimal operating data can only be depended on the installation conditions.
  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
  • 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
  • Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
  • Sinwan reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%
To Favourites
Recommend
Print
Question about the product
Details
Info
Details
  Motor Type: Capacitor induction, 2 or 4 pole
  Burnout Protection: Thermal protector
  IP Protection: IP56
  Frame: Aluminum die cast, natural color treatment
  Impeller: Steel-sheet metal fan blades, integrantly spot welded onto rotor
  Bearing: Two high precision permanently lubricated ball bearings
  Rotation: CCW seen on rotor
  Connection: Wire lead
  Weight: 1,800g (3.97 Lbs)
  Dielectric Strength: Over 1 min. at 1,500 VAC, 0.5mA, 50/60 Hz
  Insulation Resistance: Over 100 MΩ at DC 500V
  Signal Output:
  Operating Temp: Ambient non-condensing -30~+80C
  Storage Temp: -40C~+100C (at 65%RH)
  Life Expectancy: 80K hours at 45C, 50K hours at 55C, 30K hours at 65C

http://sinwan.eu

Info
Article No.
MK205AN_HR
