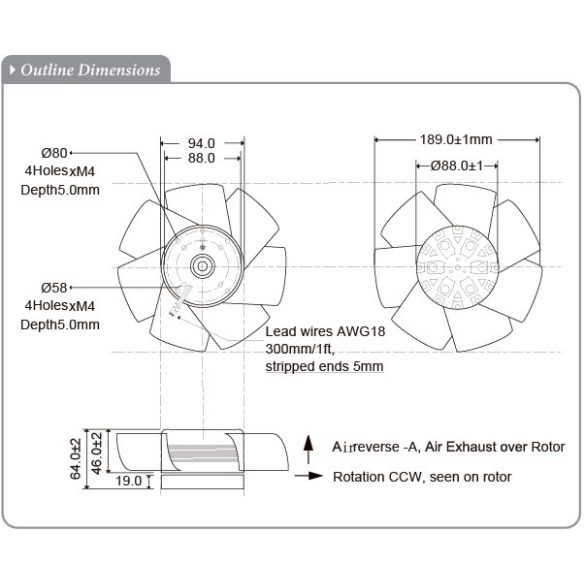

MK205RAN (A)(HR) - Sinwan AC Skeleton Fan, Metal Impeller ,Reverse Airflow, Dia.189x64mm / 7.4 inch 570~209 CFM

Name: MK205RAN (A)(HR) - Sinwan AC Skeleton Fan, Metal Impeller ,Reverse Airflow, Dia.189x64mm / 7.4 inch 570~209 CFM
SKU: MK205RAN_A_HR

Rated
Volt

Voltage
Range

Freq

Input
Power

Ref.
Speed

Max.Airflow

Max.Static Pressure

Noise
Level

Model No

VAC

Watt

RPM

CFM

m3/min

Inch/H2O

db(A)

MK205RAN11-1** (A)

115

100~120

50/60

60/80

2800/3000

532/570

15.1/16.1

0.91/0.86

23.11/21.84

2/1

MK205RAN11-2** (A)

115

100~120

50/60

55/65

2300/2250

437/428

12.4/12.1

0.69/0.52

17.53/13.21

4/3

MK205RAN11-3** (A)

115

100~120

50/60

20/30

1500/1650

285/313

8.1/8.9

0.38/0.29

9.65/7.37

6/5

MK205RAN11-4** (A)

115

100~120

50/60

18/25

1200/1100

228/209

6.5/5.9

0.21/0.14

5.33/3.56

8/7

MK205RAN11-1/2** (A)
dual speed

115

100~120

50/60

60/80
55/65

2800/3000
2300/2250

532/570
437/428

15.1/16.1
12.4/12.1

0.91/0.86
0.69/0.52

23.11/21.84
17.53/13.21

67
58

2/1
4/3

MK205RAN11-3/4** (A)
dual speed

115

100~120

50/60

20/30
18/25

1500/1600
1200/1100

285/313
228/209

8.1/8.9
6.5/5.9

0.38/0.29
0.21/0.14

9.65/7.37
5.33/3.56

48
35

6/5
8/7

MK205RAN22-1** (A)

230

200~240

50/60

60/80

2800/3000

532/570

15.1/16.1

0.91/0.86

23.11/21.84

2/1

MK205RAN22-2** (A)

230

200~240

50/60

55/65

2300/2250

437/428

12.4/12.1

0.69/0.52

17.53/13.21

4/3

MK205RAN22-3** (A)

230

200~240

50/60

20/30

1400/1600

266/304

7.5/8.6

0.38/0.29

9.65/7.37

6/5

MK205RAN22-4** (A)

230

200~240

50/60

18/25

1200/1100

228/209

6.5/5.9

0.21/0.14

5.33/3.56

8/7

MK205RAN22-1/2** (A)
dual speed

230

200~240

50/60

60/80
55/65

2800/3000
2300/2250

532/570
437/428

15.1/16.1
12.4/12.1

0.91/0.86
0.69/0.52

23.11/21.84
17.53/13.21

67
58

2/1
4/3

MK205RAN22-3/4** (A)
dual speed

230

200~240

50/60

20/30
18/25

1500/1600
1200/1100

310/325
240/220

8.8/9.2
6.8/6.2

0.47/0.28
0.38/0.17

11.94/7.11
9.65/4.32

48
35

6/5
8/7

MK205RAN11/22-1** (A)
dual voltage

115
230

100~120
200~240

50/60

60/80

2800/3000

532/570

15.1/16.1

0.91/0.86

23.11/21.84

2/1

MK205RAN8-1** (A)

48~58

50/60

60/80

2800/3000

532/570

15.1/16.1

0.91/0.86

23.11/21.84

2/1

MK205RAN44-1** (A)(380)

380

380~440

50/60

60/80

2700/2800

513/532

14.5/15.1

0.90/0.84

22.86/21.34

2/1

MK205RAN44-1** (A)(440)

440

380~440

50/60

60/80

2800/3000

532/570

15.1/16.1

0.91/0.86

23.11/21.84

2/1

** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
Sinwan reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%

Details

Data

Details


	Motor Type:	Capacitor induction, outer rotor, 1-phase

	Burnout Protection:	Thermal protector

	IP Protection:	IP56


	Frame:	Aluminum die cast, natural treatment

	Impeller:	9 blades, all metal steel

	Bearing:	Two ball bearings

	Rotation:	CCW seen on rotor, Reverse Airflow

	Connection:	Wire leads

	Weight:	1,400g


	Dielectric Strength:	Over 1 min. at 1,500VAC, 0.5mA, 50/60Hz

	Insulation Resistance:	Over 100 MΩ at DC 500V

	Signal Output:	-


	Operating Temp:	-30~+80C

	Storage Temp:	-40C~+100C

	Life Expectancy:	L10 50K hours at 55C
