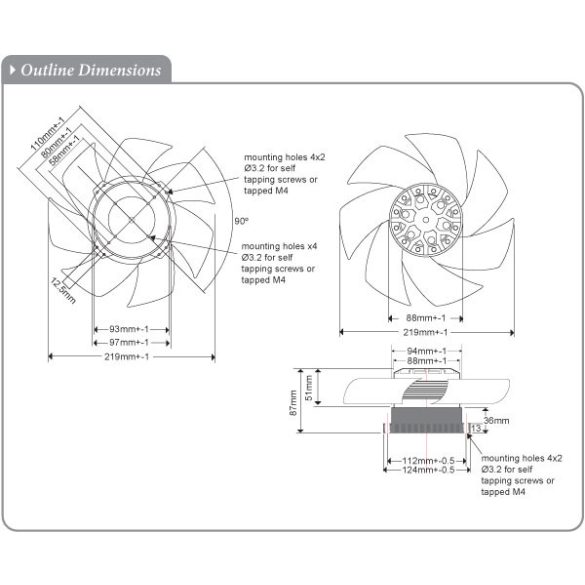

MK254GAN (HR) - Sinwan AC Skeleon Fan, Metal Impeller, Dia.219x87mm / 8.5inch 1000~370 CFM

MK254GAN (HR) - Sinwan AC Skeleon Fan, Metal Impeller, Dia.219x87mm / 8.5inch 1000~370 CFM
MK254GAN (HR) - Sinwan AC Skeleon Fan, Metal Impeller, Dia.219x87mm / 8.5inch 1000~370 CFM
MK254GAN (HR) - Sinwan AC Skeleon Fan, Metal Impeller, Dia.219x87mm / 8.5inch 1000~370 CFM
MK254GAN (HR) - Sinwan AC Skeleon Fan, Metal Impeller, Dia.219x87mm / 8.5inch 1000~370 CFM
Rated
Volt		 Voltage
Range		 Freq Input
Power		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Model No VAC VAC Hz Watt

RPM

 CFM m3/min Inch/H2O mm db(A)
MK254GAN11-1** 115 100~120 50/60 95/105 2800/3200 830/1000 23.5/28.3 0.78/0.60 19.81/15.24 70 2/1
MK254GAN11-2** 115 100~120 50/60 55/65 2300/2200 660/620 18.7/17.6 0.33/0.27 8.38/6.86 63 4/3
MK254GAN11-3** 115 100~120 50/60 32/40 1400/1600 415/500 11.8/14.2 0.25/0.20 6.35/5.08 46 6/5
MK254GAN11-4** 115 100~120 50/60 24/33 1200/1100 420/370 11.9/10.5 0.18/0.14 4.57/3.56 34 8/7
MK254GAN11-1/2**
Dual speed		 115 100~120 50/60 95/105
55/65		 2800/3200
2300/2200		 830/1000
660/620		 23.5/28.3
18.7/17.6		 0.78/0.60
0.33/0.27		 19.81/15.24
8.38/6.86		 70
63		 2/1
4/3
MK254GAN11-3/4**
Dual speed		 115 100~120 50/60 32/40
24/33		 1600/1500
1200/1100		 560/500
420/370		 15.9/14.2
11.9/10.5		 0.25/0.20
0.18/0.14		 6.35/5.08
4.57/3.56		 46
34		 6/5
8/7
MK254GAN22-1** 230 200~240 50/60 95/105 2800/3200 830/1000 23.5/28.3 0.78/0.60 19.81/15.24 70 2/1
MK254GAN22-2** 230 200~240 50/60 55/65 2300/2200 660/620 18.7/17.6 0.33/0.27 8.38/6.86 63 4/3
MK254GAN22-3** 230 200~240 50/60 32/40 1400/1600 415/500 11.8/14.2 0.25/0.20 6.35/5.08 46 6/5
MK254GAN22-1/2**
Dual speed		 230 200~240 50/60 95/105
55/65		 2800/3200
2300/2200		 830/1000
660/620		 23.5/28.3
18.7/17.6		 0.78/0.60
0.33/0.27		 19.81/15.24
8.38/6.86		 70
63		 2/1
4/3
MK254GAN22-3/4**
Dual speed		 230 200~240 50/60 32/40
24/33		 1600/1500
1200/1100		 560/500
420/370		 15.9/14.2
11.9/10.5		 0.25/0.20
0.18/0.14		 6.35/5.08
4.57/3.56		 46
34		 6/5
8/7
  • The stated airflow, air pressure, noise levels are measured with housing orifice dia.: impeller Φ +1~1.5mm, at distance: approx. height of impeller + motor frame. The optimal operating data can only be depended on the installation conditions.
  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
  • 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
  • Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
  • Sinwan reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%
To Favourites
Recommend
Print
Question about the product
Details
Info
Details
  Motor Type: Capacitor induction, 2 or 4 pole
  Burnout Protection: Thermal protector
  IP Protection: IP56
  Frame: Aluminum die cast, black cosmetics. Natural or any colors available
  Impeller: Steel-sheet metal fan blades, integrantly spot welded onto rotor
  Bearing: System: Two high precision permanently lubricated ball bearings
  Rotation: CCW seen on rotor
  Connection: Wire lead
  Weight: 1,900g (4.2Lbs)
  Dielectric Strength: Over 1 minute at 1,500 VAC, 0.5mA, 50/60 Hz
  Insulation Resistance: Over 100 MΩ at DC 500V
  Signal Output:
  Operating Temp: Ambient non-condensing -30~+80C
  Storage Temp: -40C~+100C (at 65%RH)
  Life Expectancy: 50K hours at 55C
