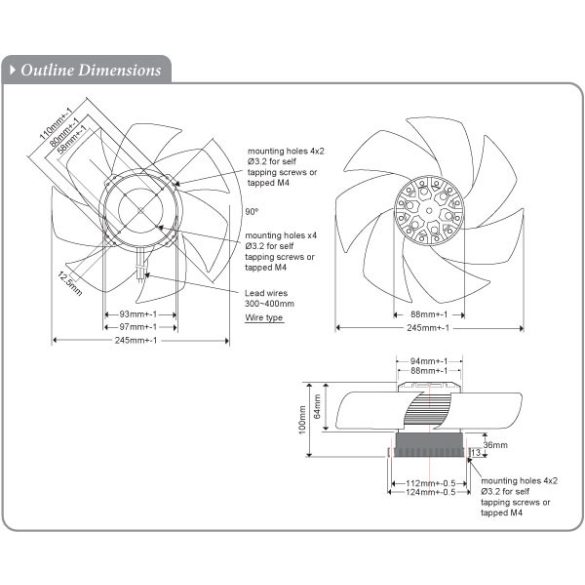

MK280GAN (A)(HR) - Sinwan AC Skeleton Fan, etal Impeller, Reverse Airflow, Dia.245x100mm / 9.6inch 1300~450 CFM
Details
Info
Details
Motor Type:Capacitor induction, outer rotor, 1-phase
Burnout Protection:Thermal protector
IP Protection:IP56
Frame:Aluminum die cast, natural color, or black
Impeller:7 blades, all metal steel
Bearing:Maintenance-free 2 ball bearings
Rotation:CCW seen on rotor. Reverse Airflow
Connection:Wire leads
Weight:1350g
Dielectric Strength:Over 1 min. at 1,500 VAC, 0.5mA, 50/60Hz
Insulation Resistance:Over 100 MΩ at DC 500V
Signal Output:-
Operating Temp:Ambient non-condensing -30~+80C
Storage Temp:-40C~+100C (at 65%RH)
Life Expectancy:L10 50K hours at 55C, 80K hours at 35C
http://sinwan.eu
Info
Article No.
MK280GAN_A_HR
