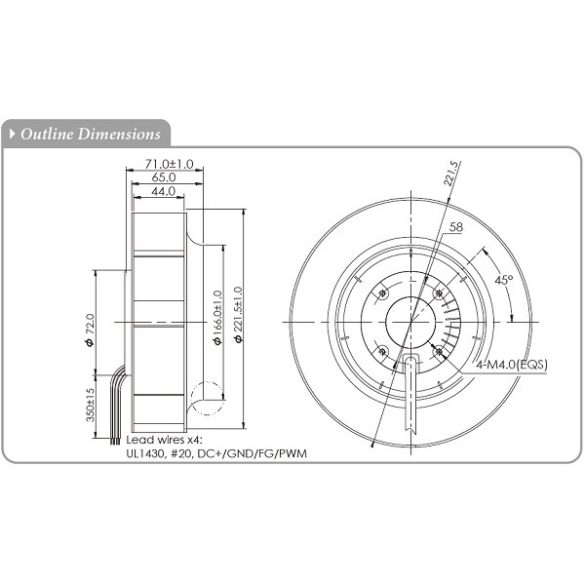

PFD220RAN - Sinwan DC Fan, Motorized Impeller, Backward curved blades, Dia.220x71mm/8.6x2.7inch 621CFM

PFD220RAN - Sinwan DC Fan, Motorized Impeller, Backward curved blades, Dia.220x71mm/8.6x2.7inch 621CFM
PFD220RAN - Sinwan DC Fan, Motorized Impeller, Backward curved blades, Dia.220x71mm/8.6x2.7inch 621CFM
PFD220RAN - Sinwan DC Fan, Motorized Impeller, Backward curved blades, Dia.220x71mm/8.6x2.7inch 621CFM
PFD220RAN - Sinwan DC Fan, Motorized Impeller, Backward curved blades, Dia.220x71mm/8.6x2.7inch 621CFM
  Motor Type: DC Centrifugal Fan
  Burnout Protection: Locked rotor / Polarity Protection
  IP Protection: -
  Frame: Aluminum sheet
  Impeller: PA66 Nylon Impeller
  Bearing: Two ball bearings
  Rotation: CW seen on rotor
  Connection: Wire leads
  Weight: 1400g
  Dielectric Strength: 500 VAC/min. Max leakage 0.5mA
  Speed Control: S/C-ntc, PWM, 0~10V S/V on request
  Signal Output: RD alarm, FG tachometer on request
  Operating Temp: -20C~+65C
  Storage Temp: -20C~+75C (at 65%RH)
  Life Expectancy: L10 50K hours at 25C
To Favourites
Recommend
Print
Question about the product
Ask about it
Details
Info
Details
Rated
Volt		 Voltage
Range

Input
Power

 Rated
Current		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Curves		 UL
Model No VDC VDC Watt Amp RPM CFM m3/min Inch/H2O mm db(A)
PFD220RAN-24H** 24 14~26.4 105.6 4.4 2800 580 16.4 2.1 53.34 65 1 R
PFD220RAN-24M** 24 14~26.4 72 3 2300 480 13.6 1.7 43.18 56 2 R
PFD220RAN-24L** 24 14~26.4 60 2.5 1800 380 10.8 1.2 30.48 45 3 R
PFD220RAN-48H** 48 36~54 129.6 2.7 3000 621 17.6 2.26 57.4 69 4 R
PFD220RAN-48M** 48 36~54 76.8 1.6 2500 500 14.2 1.84 46.74 58 5 R
PFD220RAN-48L** 48 36~54 57.6 1.2 2000 420 11.9 1.3 33.02 47 6 R
  • Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%

http://sinwan.eu

Info
Article No.
PFD220RAN
