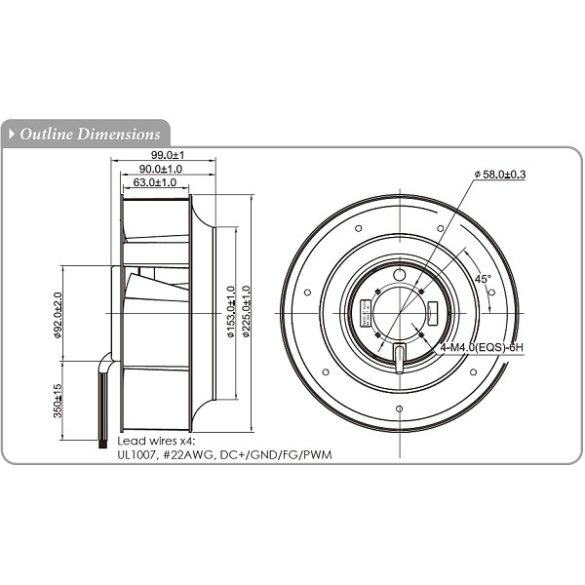

PFD225HAN - Sinwan DC Fan, Motorized Impeller, Backward curved blades, Dia.225x99mm/8.8x3.89inch 835CFM


	Motor Type:	Brushless DC motor, auto cutoff, auto restart

	Burnout Protection:	Electronically protected, polarity protected

	IP Protection:	-

	Frame:	Aluminum die casting motor frame

	Impeller:	PA66 Nylon Impeller

	Bearing:	Two ball bearings

	Rotation:	CW seen on rotor

	Connection:	Wire type

	Weight:	1,500g

	Dielectric Strength:	500 VAC/min. Max leakage 0.5mA

	Speed Control:	S/C-ntc, PWM, 0~10V S/V on request

	Signal Output:	RD alarm, FG tachometer on request

	Operating Temp:	-20C~+65C

	Storage Temp:	-20C~+75C (at 65%RH)

	Life Expectancy:	L10 50K hours at 25C

Details

Info

Details

Rated Volt	Voltage Range	Input Power	Rated Current	Ref. Speed	Max.Airflow		Max.Static Pressure		Noise Level	PQ Curves
Model No	VDC	VDC	Watt	Amp	RPM	CFM	m3/min	Inch/H2O	mm	db(A)
PFD225HAN-24H**	24	16~28	110.4	4.6	2500	835	23.6	2.05	52.07	67
PFD225HAN-48H**	48	36~56	110.4	2.3	2500	835	23.6	2.05	52.07	67

** = "WB" for wire leads type, Ball bearing, or "TB" for terminal block connecting type, Ball bearing Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
