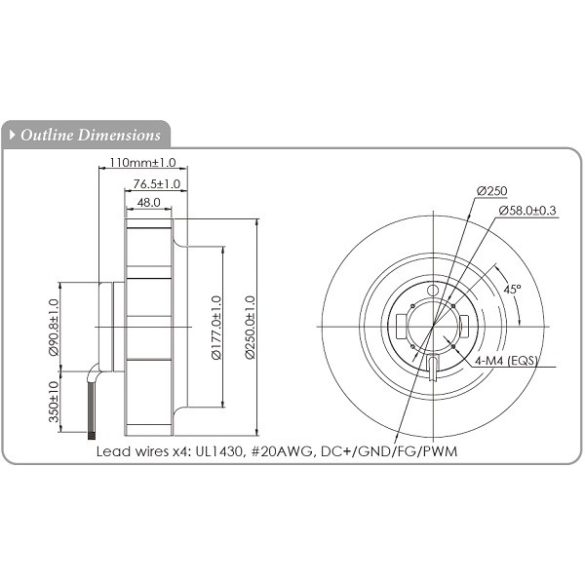

PFD250JAN - Sinwan DC Fan, Motorized Impeller, Backward curved blades, Dia.250x110mm/9.8x4.3inch 920CFM

PFD250JAN - Sinwan DC Fan, Motorized Impeller, Backward curved blades, Dia.250x110mm/9.8x4.3inch 920CFM
PFD250JAN - Sinwan DC Fan, Motorized Impeller, Backward curved blades, Dia.250x110mm/9.8x4.3inch 920CFM
PFD250JAN - Sinwan DC Fan, Motorized Impeller, Backward curved blades, Dia.250x110mm/9.8x4.3inch 920CFM
PFD250JAN - Sinwan DC Fan, Motorized Impeller, Backward curved blades, Dia.250x110mm/9.8x4.3inch 920CFM
  Motor Type: Brushless DC motor, auto cutoff, auto restart
  Burnout Protection: Electronically protected, polarity protected
  IP Protection: -
  Frame: Aluminum die casting motor frame
  Impeller: PA66 Nylon Impeller
  Bearing: Two ball bearings
  Rotation: CW seen on rotor
  Connection: Wire type
  Weight: 1,600g
  Dielectric Strength: 500 VAC/min. Max leakage 0.5mA
  Speed Control: S/C-ntc, PWM, 0~10V S/V on request
  Signal Output: RD alarm, FG tachometer on request
  Operating Temp: -20C~+65C
  Storage Temp: -20C~+75C (at 65%RH)
  Life Expectancy: L10 50K hours at 25C
To Favourites
Recommend
Print
Question about the product
Ask about it
Details
Info
Details
Rated
Volt		 Voltage
Range

Input
Power

 Rated
Current		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Curves
Model No VDC VDC Watt Amp RPM CFM m3/min Inch/H2O mm db(A)
PFD250JAN-24HH** 24 16~28 177.6 7.4 2900 920 26.1 2.17 55.12 73 1
PFD250JAN-24H** 24 16~28 129.6 5.4 2600 825 23.4 1.95 49.53 67 2
PFD250JAN-48HH** 48 36~54 182.4 3.8 2900 920 26.1 2.17 55.12 73 1
PFD250JAN-48H** 48 36~54 129.6 2.7 2600 825 23.4 1.95 49.53 67 2
  • Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%

http://sinwan.eu

Info
Article No.
PFD250JAN
