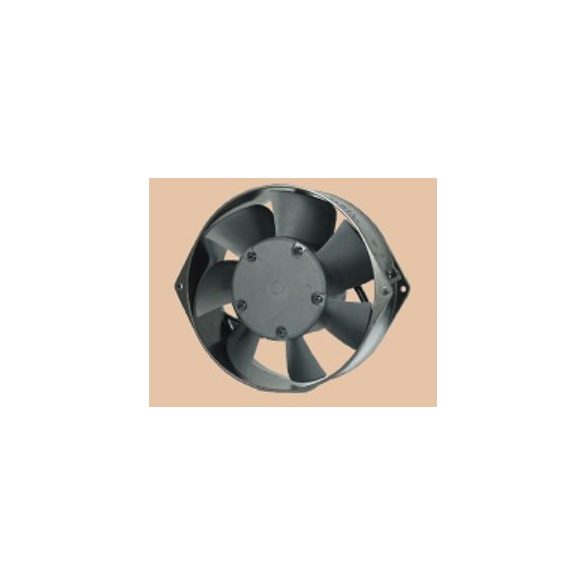

S172EAP (7) - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia. 150x172x55mm/6x2.2inch 265 CFM - 7 blades

S172EAP (7) - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia. 150x172x55mm/6x2.2inch 265 CFM - 7 blades
S172EAP (7) - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia. 150x172x55mm/6x2.2inch 265 CFM - 7 blades
S172EAP (7) - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia. 150x172x55mm/6x2.2inch 265 CFM - 7 blades
S172EAP (7) - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia. 150x172x55mm/6x2.2inch 265 CFM - 7 blades



  Motor Type: Capacitor induction, outer rotor, 1-phase
  Burnout Protection: Thermal protector, auto reset
  IP Protection: IP55 optional customer request.
  Frame: Aluminum die cast, black(S172EAP)
  Impeller: 7 blades, glass fiber reinforced plastic, rated UL94V-0
  Bearing: Two ball bearings
  Rotation: CCW seen on rotor

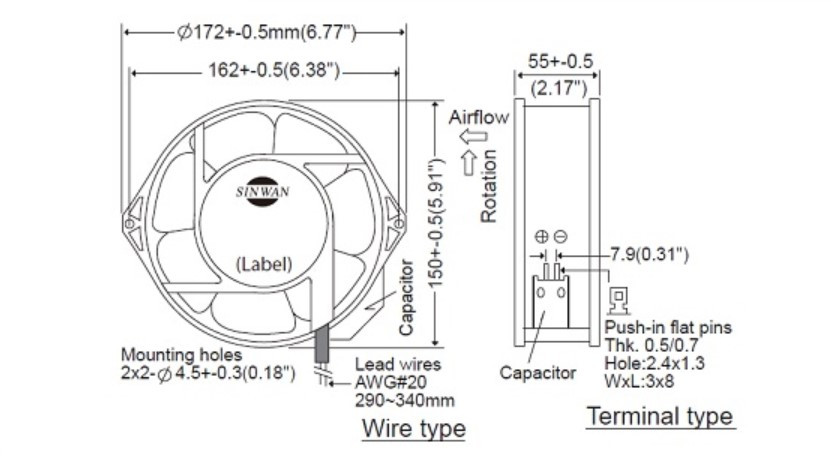

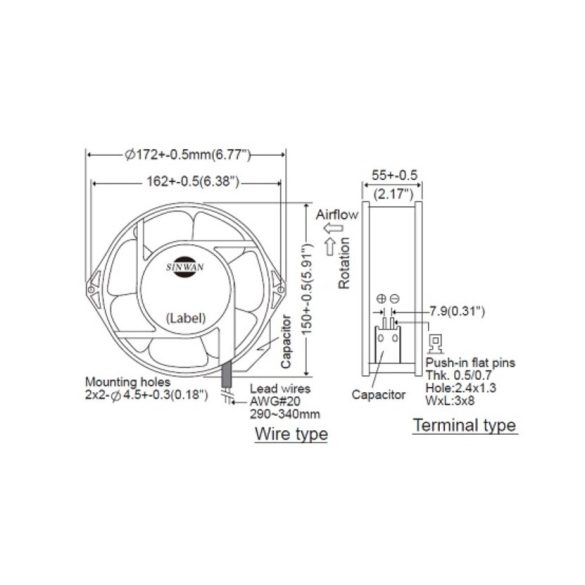

  Connection: Wire leads, terminal flat pin
  Weight: 1100 g (2.43 Lbs)
  Dielectric Strength: Over 1 min. at 1,500 VAC, 0.5mA, 50/60 Hz
  Insulation Resistance: Over 100 MΩ at DC 500V
  Signal Output: -
  Operating Temp: Ambient non-condensing -20~+70C
  Storage Temp: -40C~+100C (at 65%RH)
  Life Expectancy: L10 100K hours at 35C, 50K hours at 60C
To Favourites
Print
Ask about it
Details
Info
Details
Rated
Volt		 Voltage
Range		 Freq Input
Power		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Model No VAC VAC Hz Watt

RPM

 CFM m3/min Inch/H2O mm db(A)
S172EAP-11-1** (7) 115 100~120 50/60 26/35 (~42) 2800/3250 220/265 6.2/7.5 0.55/0.68 13.97/17.27 60/62 2/1
S172EAP-11-2** (7) 115 100~120 50/60 22/20 2400/2700 190/220 5.4/6.2 0.46/0.56 11.68/14.22 51/55 4/3
S172EAP-22-1** (7) 230 200~240 50/60 26/35 (~42) 2800/3250 220/265 6.2/7.5 0.55/0.68 13.97/17.27 60/62 2/1
S172EAP-22-2** (7) 230 200~240 50/60 22/20 2400/2700 190/220 5.4/6.2 0.46/0.56 11.68/14.22 51/55 4/3
S172EAP-38-1** (7) 380 380~420 50/60 26/35 (~42) 2800/3200 220/260 6.2/7.4 0.55/0.65 13.97/16.51 60/62 2/1
S172EAP-44-1** (7) 440 440~480 50/60 26/35 (~42) 2800/3250 220/265 6.2/7.5 0.55/0.68 13.97/17.27 60/62 2/1
S172EAP-11/22-1** (7)
Dual voltage		 115
230		 100~120
200~240		 50/60 26/35 (~42) 2800/3250 220/265 6.2/7.5 0.55/0.68 13.97/17.27 60/62 2/1
  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
  • 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
  • Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
  • Sinwan reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%
