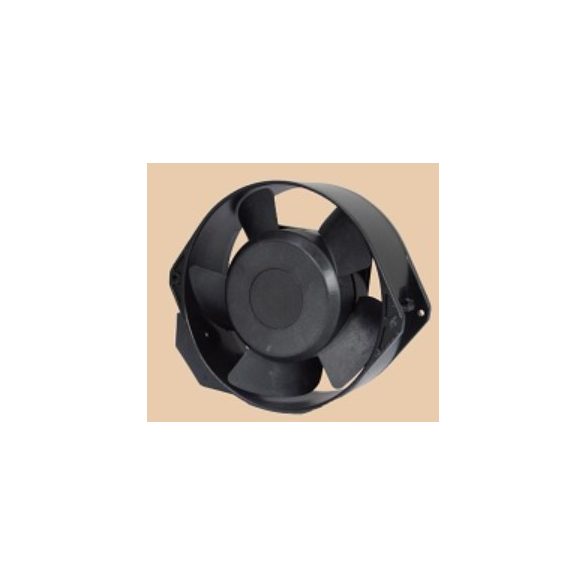

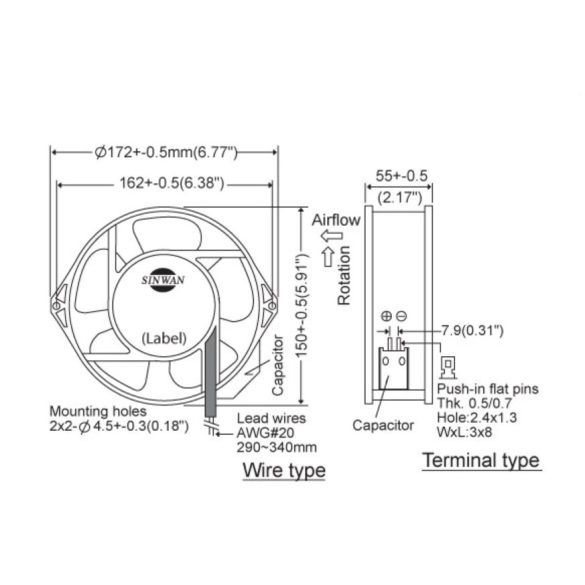

S172EAP - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia. 150x172x55mm/6.7x2.2inch 230 CFM

S172EAP - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia. 150x172x55mm/6.7x2.2inch 230 CFM
S172EAP - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia. 150x172x55mm/6.7x2.2inch 230 CFM
S172EAP - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia. 150x172x55mm/6.7x2.2inch 230 CFM
S172EAP - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia. 150x172x55mm/6.7x2.2inch 230 CFM
  Motor Type: Capacitor induction, inner rotor, 1-phase
  Burnout Protection: Impedance protected
  IP Protection: -
  Frame: Aluminum die cast, black(S172EAP)
  Impeller: 5 blades, glass fiber reinforced plastic, rated UL94V-0
  Bearing: Two ball bearings
  Rotation: CW seen on rotor
  Connection: Wire leads, terminal flat pin
  Weight: 1100 g (2.43 Lbs)
  Dielectric Strength: Over 1 min. at 1,500 VAC, 0.5mA, 50/60 Hz
  Insulation Resistance: Over 100 MΩ at DC 500V
  Signal Output: Optional:alarm R/D, tachometer F/G
  Operating Temp: Ambient non-condensing -20~+70C
  Storage Temp: -40C~+100C (at 65%RH)
  Life Expectancy: L10 100K hours at 35C, 50K hours at 60C
To Favourites
Print
Ask about it
Details
Info
Details
Rated
Volt		 Voltage
Range		 Freq Input
Power		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Model No VAC VAC Hz Watt

RPM

 CFM m3/min Inch/H2O mm db(A)
S172EAP-11-1** 115 100~120 50/60 26/35 2680/3200 193/230 5.5/6.5 0.55/0.68 13.97/17.27 52 2/1
S172EAP-11-2** 115 100~120 50/60 22/20 2400/2500 173/180 4.9/5.1 0.49/0.52 12.45/13.21 43 4/3
S172EAP-11-3** 115 100~120 50/60 18/16 1450/1680 105/122 3/3.5 0.32/0.37 8.13/9.4 32 6/5
S172EAP-11-1/2**dual speed
(-1 High, -2 Medium)		 115 100~120 50/60 26/35
22/20		 2680/3200
2400/2500		 193/230
173/180		 5.5/6.5
4.9/5.1		 0.55/0.68
0.49/0.52		 13.97/17.27
12.45/13.21		 52
43		 2/1
4/3
S172EAP-11-1/2**dual speed
(-1 High, -2 Low)		 115 100~120 50/60 26/35
22/20		 2650/3200
1450/1680		 193/230
105/122		 5.5/6.5
3/3.5		 0.55/0.68
0.32/0.37		 13.97/17.27
8.13/9.4		 51
32		 2/1
6/5
S172EAP-22-1** 230 200~240 50/60 26/35 2680/3200 193/230 5.5/6.5 0.55/0.68 13.97/17.27 52 2/1
S172EAP-22-2** 230 200~240 50/60 22/20 2400/2500 173/180 4.9/5.1 0.49/0.52 12.45/13.21 43 4/3
S172EAP-22-3** 230 200~240 50/60 18/16 1450/1680 105/122 3/3.5 0.32/0.37 8.13/9.4 32 6/5
S172EAP-22-1/2**dual speed
(-1 High, -2 Medium)		 230 200~240 50/60 26/35
22/20		 2680/3200
2400/2500		 193/230
173/180		 5.5/6.5
4.9/5.1		 0.49/0.52
0.49/0.52		 12.45/13.21
12.45/13.21		 52
43		 2/1
4/3
S172EAP-22-1/2**dual speed
(-1 High, -2 Low)		 230 200~240 50/60 26/35
22/20		 2650/3200
1450/1680		 193/230
105/122		 5.5/6.5
3/3.5		 0.55/0.68
0.32/0.37		 13.97/17.27
8.13/9.4		 52
32		 2/1
6/5
S172EAP-11/22-1**dual volts
dual voltage115/230		 115
230		 100~120
200~240		 50/60 26/35 2700/3200
2700/3200		 185/215 5.2/6.1 0.55/0.68 13.97/17.27 52 2/1
  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
  • 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
  • Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
  • Sinwan reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%
