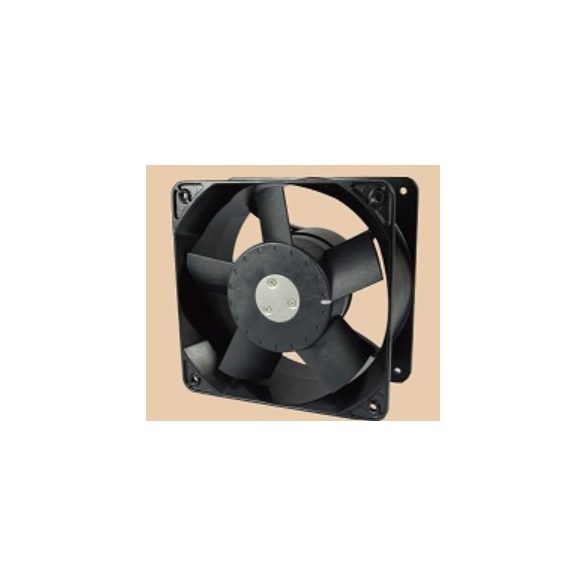

S180GAP - Sinwan AC Plastic Impeller Tubeaxial Fan, 176x176x89mm/7x3.5inch 410 CFM

S180GAP - Sinwan AC Plastic Impeller Tubeaxial Fan, 176x176x89mm/7x3.5inch 410 CFM
S180GAP - Sinwan AC Plastic Impeller Tubeaxial Fan, 176x176x89mm/7x3.5inch 410 CFM
S180GAP - Sinwan AC Plastic Impeller Tubeaxial Fan, 176x176x89mm/7x3.5inch 410 CFM
S180GAP - Sinwan AC Plastic Impeller Tubeaxial Fan, 176x176x89mm/7x3.5inch 410 CFM
  Motor Type: Capacitor induction, inner rotor, 1-phase
  Burnout Protection: Thermally protected, auto cut-off, auto reset
  IP Protection: -
  Frame: Aluminum die cast, black(S180GAP), natural coating(S180GAN)
  Impeller: 5 blades, glass fiber reinforced plastic, rated UL94V-0
  Bearing: Two ball bearings
  Rotation: CW seen on rotor

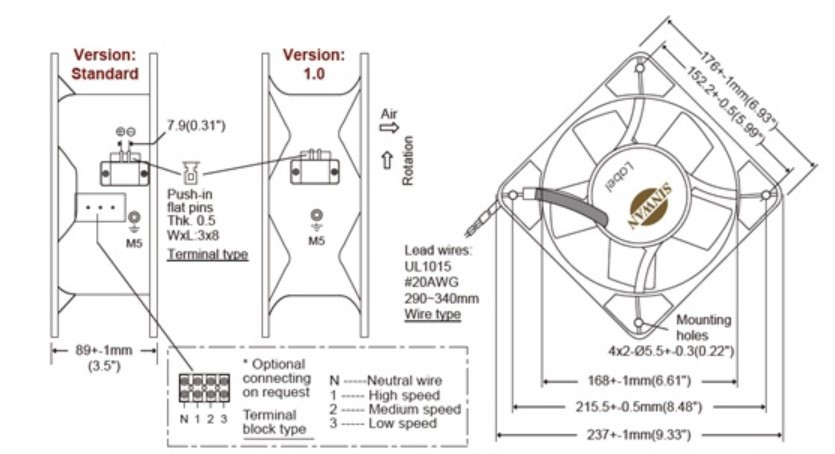

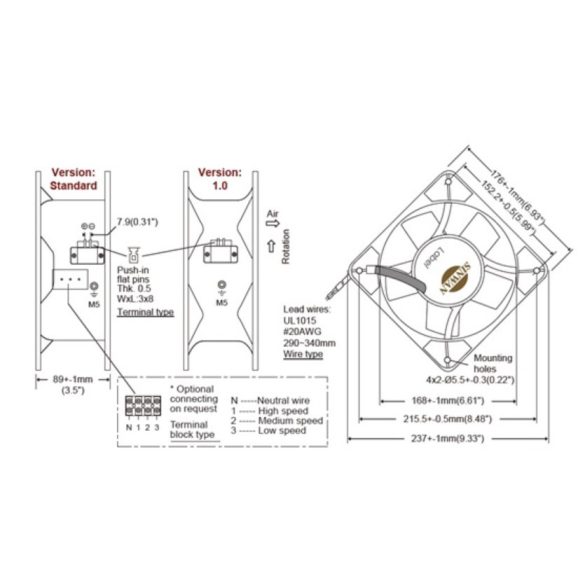

  Connection: Wire leads, terminal flat pin, or terminal block on request
  Weight: 1800 g (4.0 Lbs)
  Dielectric Strength: Over 1 min. at 1,500 VAC, 0.5mA, 50/60 Hz
  Insulation Resistance: Over 100 MΩ at DC 500V
  Signal Output: Optional:alarm R/D, tachometer F/G
  Operating Temp: Ambient non-condensing -20~+70C
  Storage Temp: -40C~+100C (at 65%RH)
  Life Expectancy: L10 90K hours at 35C, 40K hours at 60C
To Favourites
Print
Ask about it
Details
Info
Details
Rated
Volt		 Voltage
Range		 Freq Input
Power		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Model No VAC VAC Hz Watt

RPM

 CFM m3/min Inch/H2O mm db(A)
S180GAP-11-1** 115 100~120 50/60 60/70 2750/3200 360/410 10.2/11.6 0.68/0.85 17.27/21.59 62 2/1
S180GAP-11-2** 115 100~120 50/60 40/50 2300/2200 305/290 8.6/8.2 0.62/0.58 15.75/14.73 50 4/3
S180GAP-11-3** 115 100~120 50/60 26/38 1400/1600 190/210 5.4/5.9 0.37/0.43 9.4/10.92 38 6/5
S180GAP-11-1/2**
dual speed		 115 100~120 50/60 60/70
40/50		 2750/3200
2300/2200		 360/410
305/290		 10.2/11.6
8.6/8.2		 0.68/0.85
0.62/0.58		 17.27/21.59
15.75/14.73		 62
49		 2/1
4/3
S180GAP-22-1** 230 200~240 50/60 60/70 2750/3200 360/410 10.2/11.6 0.68/0.85 17.27/21.59 62 2/1
S180GAP-22-2** 230 200~240 50/60 40/50 2300/2200 305/290 8.6/8.2 0.62/0.58 15.75/14.73 50 4/3
S180GAP-22-3** 230 200~240 50/60 26/38 1400/1600 190/210 5.4/5.9 0.37/0.43 9.4/10.92 38 6/5
S180GAP-22-1/2**
dual speed		 230 200~240 50/60 60/70
40/50		 2750/3200
2400/2300		 360/410
305/290		 10.2/11.6
8.6/8.2		 0.68/0.85
0.62/0.58		 17.27/21.59
15.75/14.73		 62
50		 2/1
4/3
S180GAP-38-1** 380 380~420 50/60 60/70 2700/3200 355/410 10.1/11.6 0.68/0.85 17.27/21.59 62 2/1
S180GAP-44-1** 440 440~480 50/60 60/70 2700/3200 355/410 10.1/11.6 0.68/0.85 17.27/21.59 62 2/1
  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
  • 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
  • Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
  • Sinwan reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%
