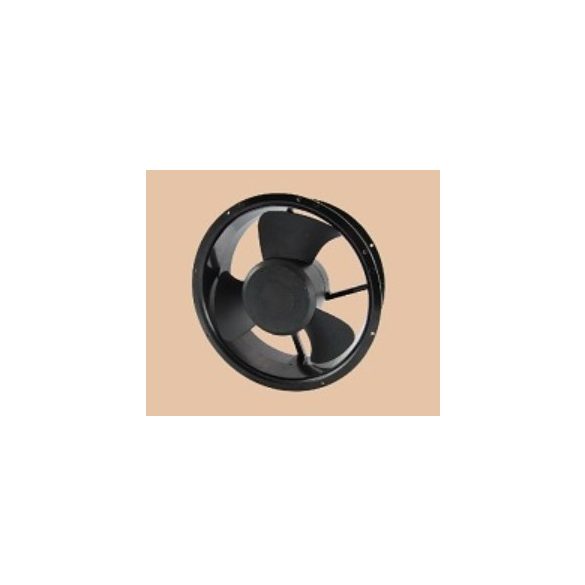

S200RAP - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia.200x220x70mm/8x2.8inch 510 CFM


	Motor Type:	Capacitor induction, inner rotor, 1-phase

	Burnout Protection:	Thermal protector, auto cut-off, auto reset

	IP Protection:	-


	Frame:	Aluminum die cast, black(S200RAP), natural coating(S200RAN)

	Impeller:	5 blades, glass fiber reinforced plastic, rated UL94V-0

	Bearing:	Two ball bearings

	Rotation:	CCW seen on rotor

	Connection:	Wire leads, terminal flat pin

	Weight:	2,200 g (4.85 Lbs)


	Dielectric Strength:	Over 1 min. at 1,500 VAC, 0.5mA, 50/60 Hz

	Insulation Resistance:	Over 100 MΩ at DC 500V

	Signal Output:	Optional:alarm R/D, tachometer F/G


	Operating Temp:	Ambient non-condensing -20~+70C

	Storage Temp:	-40C~+100C (at 65%RH)

	Life Expectancy:	L10 90K hours at 35C, 40K hours at 60C

Details

Info

Details

Rated
Volt

Voltage
Range

Freq

Input
Power

Ref.
Speed

Max.Airflow

Max.Static Pressure

Noise
Level

Model No

VAC

Watt

RPM

CFM

m3/min

Inch/H2O

db(A)

S200RAP-11-1**

115

100~120

50/60

60/75 (~85)

2800/3200

440/510

12.5/14.4

0.85/0.97

21.59/24.64

2/1

S200RAP-11-2**

115

100~120

50/60

45/55

2500/2200

398/350

11.3/9.9

0.75/0.55

19.05/13.97

4/3

S200RAP-11-3**

115

100~120

50/60

23/35

1500/1600

230/260

6.5/7.4

0.45/0.49

11.43/12.45

6/5

S200RAP-11-1/2**
dual speed,2 pole

115

100~120

50/60

60/75 (~85)
45/55

2800/3250
2500/2200

440/510
398/350

12.5/14.4
11.3/9.9

0.85/0.97
0.75/0.55

21.59/24.64
19.05/13.97

66
52

S200RAP-11-2/3**
dual speed,4 pole

115

100~120

50/60

45/55
23/35

2400/2600
1600/1500

370/400
260/230

10.5/11.3
7.4/6.5

0.72/0.80
0.49/0.45

18.29/20.32
12.45/11.43

52
43

S200RAP-22-1**

230

200~240

50/60

60/75 (~85)

2800/3200

440/510

12.5/14.4

0.85/0.97

21.59/24.64

2/1

S200RAP-22-2**

230

200~240

50/60

45/55

2500/2200

398/350

11.3/9.9

0.75/0.55

19.05/13.97

4/3

S200RAP-22-3**

230

200~240

50/60

23/35

1500/1600

230/260

6.5/7.4

0.45/0.49

11.43/12.45

6/5

S200RAP-22-1/2**
dual speed,2 pole

230

200~240

50/60

60/75 (~85)
45/55

2800/3250
2400/2600

440/510
370/400

12.5/14.4
10.5/11.3

0.85/0.97
0.72/0.80

21.59/24.64
18.29/20.32

66
52

S200RAP-22-2/3**
dual speed,4 pole

230

200~240

50/60

45/55
23/35

2400/2600
1600/1500

370/400
260/230

10.5/11.3
7.4/6.5

0.72/0.80
0.49/0.45

18.29/20.32
12.45/11.43

52
43

** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
Sinwan reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%
