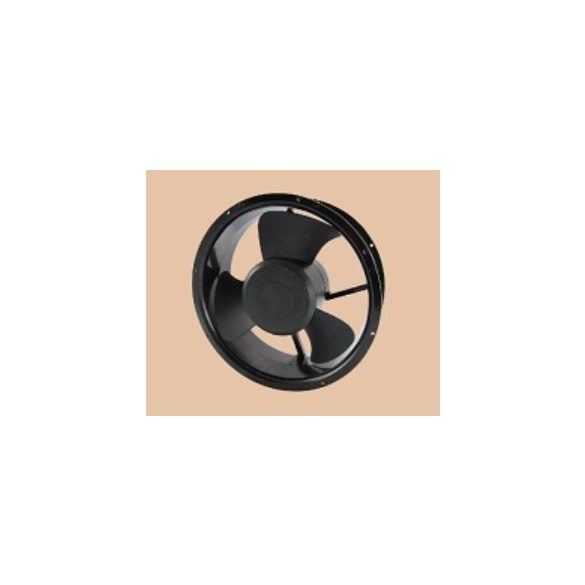

S254RAP - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia.254x89mm/10x3.5inch 1068 CFM

S254RAP - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia.254x89mm/10x3.5inch 1068 CFM
S254RAP - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia.254x89mm/10x3.5inch 1068 CFM
S254RAP - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia.254x89mm/10x3.5inch 1068 CFM
S254RAP - Sinwan AC Plastic Impeller Tubeaxial Fan, Dia.254x89mm/10x3.5inch 1068 CFM
  Motor Type: Capacitor induction, inner rotor, 1-phase or 3-phase
  Burnout Protection: Thermally protected, auto cut-off, auto reset
  IP Protection:
  Frame: Aluminum die cast, black color coating
  Impeller: 3 blades, glass fiber reinforced plastic, rated UL94V-0
  Bearing: Two ball bearings
  Rotation: CCW seen on rotor

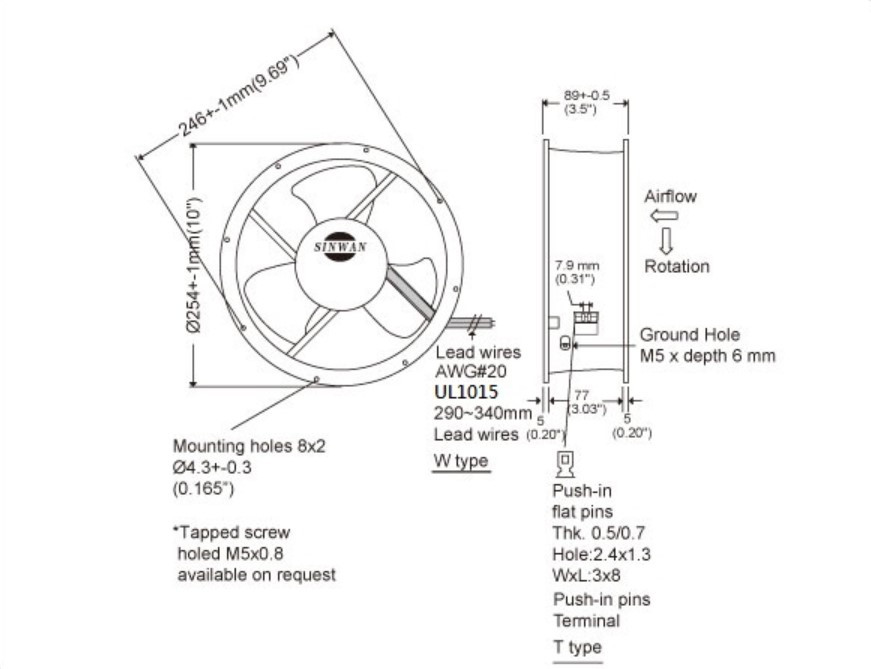

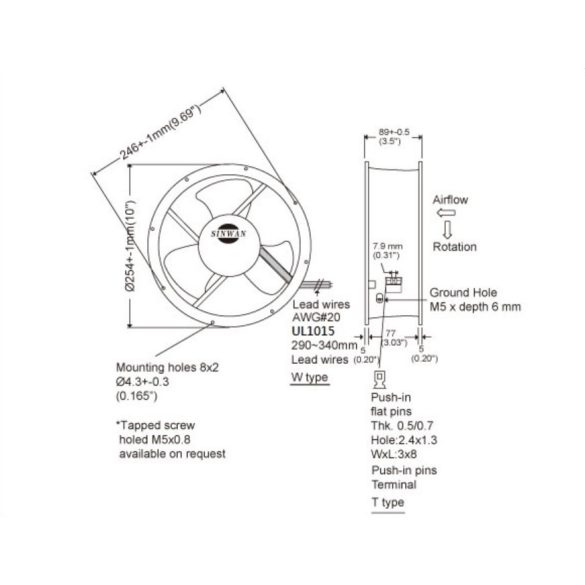

  Connection: Wire leads-WB, or push-in terminal flat pins-TB
  Weight: 2,460 g (5.4 Lbs)
  Dielectric Strength: Over 1 min. at 1,500 VAC, 0.5mA, 50/60 Hz
  Insulation Resistance: Over 100 MΩ at DC 500V
  Signal Output: Optional:alarm R/D, tachometer F/G
  Operating Temp: Ambient non-condensing -20~+65℃
  Storage Temp: -40℃~+100 ℃(at 65%RH)
  Life Expectancy: L10 80K hours at 35℃, 30K hours at 60℃
To Favourites
Print
Ask about it
Details
Info
Details
Rated
Volt		 Voltage
Range		 Freq Input
Power		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Model No VAC VAC Hz Watt

RPM

 CFM m3/min Inch/H2O mm db(A)
S254RAP-11-1** (11) 115 100~120 50/60 60/75
(~135)		 2800/3200 880/1068 24.9/30.2 1.2/1.1 30.48/27.94 70
S254RAP-11-1** 115 100~120 50/60 60/75
(~110)		 2600/2700 820/860 23.2/24.4 0.78/0.73 19.81/18.54 65 2/1
S254RAP-11-2** 115 100~120 50/60 45/55
(~80)		 2200/2000 690/640 19.5/18.1 0.65/0.54 16.51/13.72 51 4/3
S254RAP-11-3** 115 100~120 50/60 23/35 1450/1680 450/535 12.7/15.1 0.43/0.47 10.92/11.94 45 6/5
S254RAP-11-3** (33) 115 100~120 50/60 23/35 1200/1150 370/340 10.5/9.6 0.35/0.31 8.89/7.87 35 -
S254RAP-22-1** (11) 230 200~240 50/60 60/75
(~135)		 2800/3200 880/1068 24.9/30.2 1.2/1.1 30.48/27.94 70
S254RAP-22-1** 230 200~240 50/60 60/75
(~110)		 2600/2700 820/860 23.2/24.4 0.78/0.73 19.81/18.54 65 2/1
S254RAP-22-2** 230 200~240 50/60 45/55
(~80)		 2200/2000 690/640 19.5/18.1 0.65/0.54 16.51/13.72 51 4/3
S254RAP-22-3** 230 200~240 50/60 23/35 1450/1680 450/535 12.7/15.1 0.43/0.47 10.92/11.94 45 6/5
S254RAP-22-3** (33) 230 200~240 50/60 23/35 1200/1150 370/340 10.5/9.6 0.35/0.31 8.89/7.87 35 -
S254RAP-38-1** 380 380~420 50/60 75/105 2600/2650 820/850 23.2/24.1 0.78/0.73 19.81/18.54 65 2/1
S254RAP-44-1** 440 440~480 50/60 75/105 2600/2650 820/850 23.2/24.1 0.78/0.73 19.81/18.54 65 2/1
S254RAP-11-1/2**
dual speed		 115 100~120 50/60 60/75
(~110)
45/55
(~80)		 2600/2700

2200/2000		 820/860

690/640		 23.2/24.4

19.5/18.1		 0.78/0.73

0.65/0.54		 19.81/18.54

16.51/13.72		 65

51		 -
S254RAP-11-1/3**
dual speed		 115 100~120 50/60 60/75
(~110)
23/35		 2500/2400

1800/1600		 790/760

560/520		 22.4/21.5

15.9/14.7		 0.74/0.65

0.54/0.43		 18.8/16.51

13.72/10.92		 65

48		 -
S254RAP-11-2/3**
dual speed		 115 100~120 50/60 45/55
(~80)
23/35		 2200/2000
1900/1700		 690/640
608/544		 19.5/18.1
17.2/15.4		 0.65/0.54
0.52/0.47		 16.51/13.72
13.21/11.94		 51
47		 4/3
S254RAP-11/22-1**(11)
dual voltage		 115
230		 100~120
200~240		 50/60 60/75
(~135)		 2800/3150 880/1000 24.9/28.3 1.2/1.1 30.48/27.94 70
  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
  • 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
  • Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
  • Sinwan reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%
