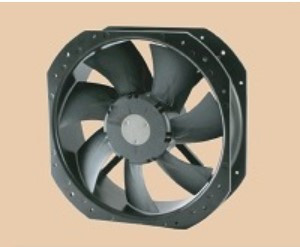

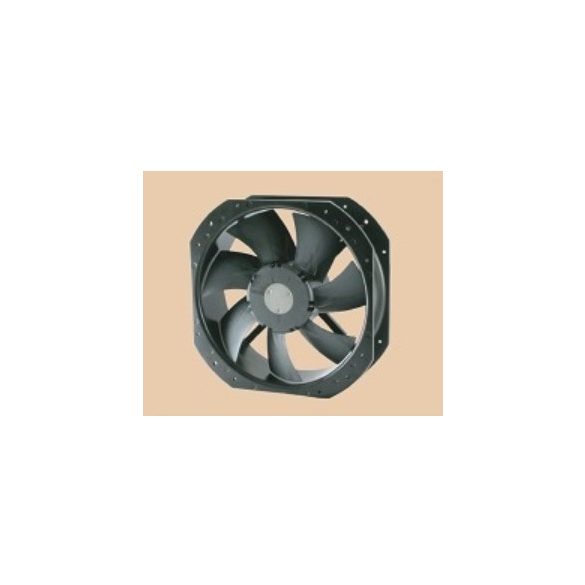

S280RAP - Sinwan AC Plastic Impeller Tubeaxial Fan, 280x280x88.9mm/11x3.5inch 1450 CFM

S280RAP - Sinwan AC Plastic Impeller Tubeaxial Fan, 280x280x88.9mm/11x3.5inch 1450 CFM
S280RAP - Sinwan AC Plastic Impeller Tubeaxial Fan, 280x280x88.9mm/11x3.5inch 1450 CFM
S280RAP - Sinwan AC Plastic Impeller Tubeaxial Fan, 280x280x88.9mm/11x3.5inch 1450 CFM
S280RAP - Sinwan AC Plastic Impeller Tubeaxial Fan, 280x280x88.9mm/11x3.5inch 1450 CFM



  Motor Type: Capacitor induction, inner rotor, 1-phase
  Burnout Protection: Thermally protected, auto cut-off, auto reset
  IP Protection: -
  Frame: Aluminum die cast, black color
  Impeller: 7 blades, glass fiber reinforced plastic, rated UL94V-0
  Bearing: Two ball bearings
  Rotation: CCW seen on rotor
  Connection: Wire leads, or push-in terminal flat pins
  Weight: 3,950g ( 8.7 Lbs)
  Dielectric Strength: Over 1 min. at 1,500 VAC, 0.5mA, 50/60 Hz
  Insulation Resistance: Over 100 MΩ at DC 500V
  Signal Output: Optional:alarm R/D, tachometer F/G
  Operating Temp: Ambient non-condensing -20~+70C
  Storage Temp: -40C~+100C (at 65%RH)
  Life Expectancy: L10 90K hours at 35C, 50K hours at 60C
To Favourites
Print
Ask about it
Details
Info
Details



Rated
Volt		 Voltage
Range		 Freq Input
Power		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Model No VAC VAC Hz Watt

RPM

 CFM m3/min Inch/H2O mm db(A)
S280RAP-11-1** 115 100~120 50/60 181/286 2800/3200 1300/1450 36.8/41.1 1.25/1.1 31.75/27.94 75 2/1
S280RAP-11-2** 115 100~120 50/60 58/55 1500/1700 650/750 18.4/21.2 0.38/0.49 9.65/12.45 48 4/3
S280RAP-11-3** 115 100~120 50/60 32/37 1100/1000 465/450 13.2/12.7 0.16/0.11 4.06/2.79 35 6/5
S280RAP-22-1** 230 200~240 50/60 181/286 2800/3200 1300/1450 36.8/41.1 1.25/1.1 31.75/27.94 75 2/1
S280RAP-22-2** 230 200~240 50/60 58/55 1500/1700 650/750 18.4/21.2 0.38/0.49 9.65/12.45 48 4/3
S280RAP-22-3** 230 200~240 50/60 32/37 1100/1000 465/450 13.2/12.7 0.16/0.11 4.06/2.79 35 6/5
S280RAP-38-1** 380 380~420 50/60 90/140 2750/3000 1280/1360 36.2/38.5 1.2/1 30.48/25.4 75 2/1
S280RAP-44-1** 440 440~480 50/60 90/140 2750/3000 1280/1360 36.2/38.5 1.2/1 30.48/25.4 75 2/1
S280RAP-11/22-1**
dual voltage		 115
230		 100~120
200~240		 50/60 181/286 2800/3200 1300/1450 36.8/41.1 1.25/1.1 31.75/27.94 75 2/1
  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
  • 100, 200, 240V or special voltages 12, 24, 28, 38, 42, 48, 380~440~480... 50/60Hz, & dual voltage version available on request.
  • Dual speed High/Medium 1/2, High/Low 1/3, Medium/Low 2/3, Low/extra Low 3/4 or triple speed 1/2/3 available on request.
  • Sinwan reserves the right to change data and improve electrical or mechanical design without notice, data tolerance +-10%

http://sinwan.eu

Info
Article No.
S280RAP
