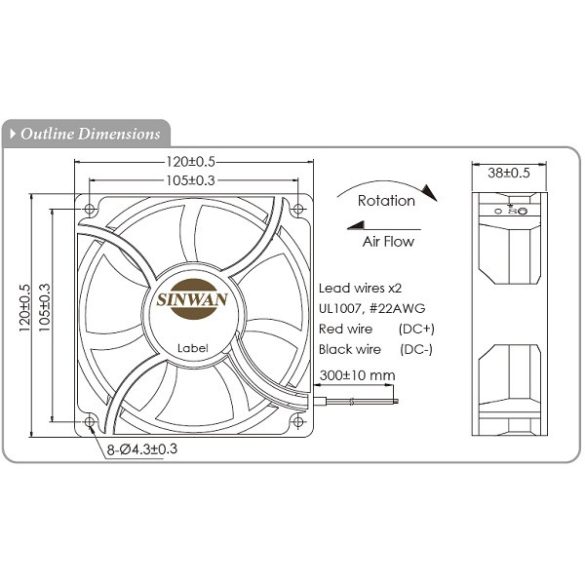

SD1238AP (HR)(MS) - Sinwan DC Axial Fan, Plastic Impeller, Dia.120x120x38mm/4.7x1.5inch 180~68 CFM

SD1238AP (HR)(MS) - Sinwan DC Axial Fan, Plastic Impeller, Dia.120x120x38mm/4.7x1.5inch 180~68 CFM
SD1238AP (HR)(MS) - Sinwan DC Axial Fan, Plastic Impeller, Dia.120x120x38mm/4.7x1.5inch 180~68 CFM
SD1238AP (HR)(MS) - Sinwan DC Axial Fan, Plastic Impeller, Dia.120x120x38mm/4.7x1.5inch 180~68 CFM
SD1238AP (HR)(MS) - Sinwan DC Axial Fan, Plastic Impeller, Dia.120x120x38mm/4.7x1.5inch 180~68 CFM
Rated
Volt		 Voltage
Range

Input
Power

 Rated
Current		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Curves		 UL
Model No VDC VDC Watt Amp RPM CFM m3/min Inch/H2O mm db(A)
SD1238AP-12SH** 12 8~13.8 10.6 (~17) 0.88 (~1.43) 4200 180 5.1 0.98 24.89 54 SH R
SD1238AP-12HH** 12 8~13.8 8.4 (~10) 0.7 (~0.9) 3200 136 3.9 0.56 14.22 48 HH R
SD1238AP-12H** 12 8~13.8 6.0 0.50 2900 124 3.5 0.47 11.94 44 H R
SD1238AP-12M** 12 8~13.8 4.8 0.40 2600 115 3.3 0.43 10.92 41 M R
SD1238AP-12L** 12 8~13.8 2.4 0.2 2000 90 2.5 0.32 8.13 35 L R
SD1238AP-12L** (2L) 12 8~13.8 2.4 0.2 1500 68 1.9 0.24 6.1 28 LL R
SD1238AP-24SH** 24 15~26 10.3 (~22) 0.43 (~0.9) 4200 180 5.1 0.98 24.89 54 SH R
SD1238AP-24HH** 24 15~26 8.4 (~11) 0.35 (~0.48) 3200 136 3.9 0.56 14.22 48 HH R
SD1238AP-24H** 24 15~26 5.5 (~12) 0.23 (~0.5) 2900 124 3.5 0.47 11.94 44 H R
SD1238AP-24M** 24 18~27 4.6 (~8) 0.19 (~0.34) 2600 115 3.3 0.43 10.92 41 M R
SD1238AP-24L** 24 18~27.6 3.6 0.15 2000 90 2.5 0.32 8.13 35 L R
SD1238AP-24L** (2L) 24 18~27.6 3.6 0.15 1500 68 1.9 0.24 6.1 28 LL R
SD1238AP-48SH** 48 28~55 10.6 (~20) 0.22 (~0.41) 4200 180 5.1 0.98 24.89 54 SH R
SD1238AP-48HH** 48 28~55 7.7 (~15) 0.16 (~0.3) 3200 136 3.9 0.56 14.22 48 HH R
SD1238AP-48H** 48 28~55 5.0 (~14) 0.10 (~0.29) 2900 124 3.5 0.47 11.94 44 H R
SD1238AP-48M** 48 28~55.2 3.8 (~7) 0.08 (~0.14) 2600 115 3.3 0.43 10.92 41 M R
SD1238AP-48L** 48 30~56 3.4 0.07 2000 90 2.5 0.32 8.13 35 L R
SD1238AP-48L** (2L) 48 30~56 3.4 0.07 1500 68 1.9 0.24 6.1 28 LL R
  • ** = "WB" for wire lead type Ball bearing
  • Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
To Favourites
Recommend
Print
Question about the product
Details
Info
Details
  Motor Type: Brushless DC Motor, auto cutoff, auto restart
  Burnout Protection: Elcetronically protected, polarity protected
  IP Protection: IP55,56,68 optional request
  Frame: Glass fiber reinforced thermoplastic, rated UL94V-0
  Impeller: 7 blades, glass fiber reinforced plastic, rated UL94V-0
  Bearing: Two ball bearings
  Rotation: CCW seen on rotor
  Connection: Wire lead
  Weight: 320g
  Dielectric Strength: 500 VAC/min. Max leakage 500mA
  Speed Control: Optional:PWM, S/C NTC thermister
  Signal Output: Optional:RD Rotation Detactor, FG Frequency Generator
  Operating Temp: -10C~+100C
  Storage Temp: -40C~+75C (at 65%RH)
  Life Expectancy: L10 70K hours at 40C

http://sinwan.eu

Info
Article No.
SD1238AP_HR_MS
