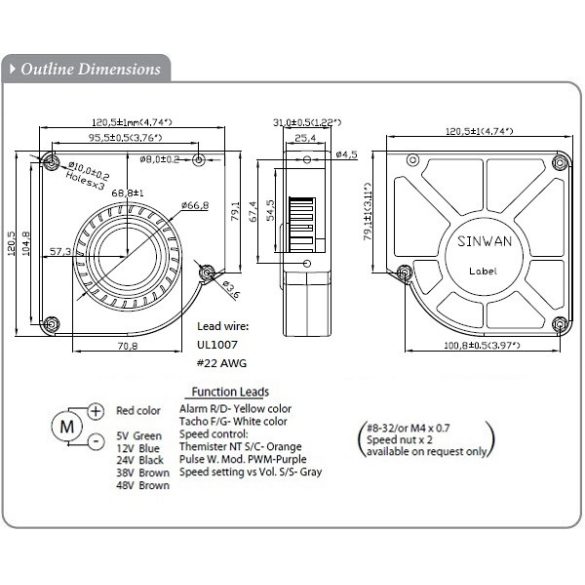

SD600PT - Sinwan DC Blower Fan Dia.120x120x31mm 30~20CFM


	Motor Type:	Brushless DC, auto cutoff, auto restart, locking and polarity protected motor

	Burnout Protection:

	IP Protection:	IP55, IP67 (Optional)

	Frame:	Glass fiber reinforced PBT thermoplastic, UL94V-0

	Impeller:	Glass fiber reinforced PBT thermoplastic, UL94V-0 impeller

	Bearing:	Double sealed high precision ball bearing

	Rotation:	CW seen on rotor

	Connection:	Wire leads

	Weight:	260 g (0.57 Lbs)

	Dielectric Strength:	500 VAC/min. Max leakage 0.5mA

	Speed Control:	Optional: PWM, S/C NTC thermister on request

	Signal Output:	Optional: RD Rotation Detactor, FG Frequency Generator

	Operating Temp:	-20C~+65C

	Storage Temp:	-20C~+75C (at 65%RH)

	Life Expectancy:	Ball bearings 65,000 hours at 45C, 50,000 hours at 60C

Details

Info

Details

Rated Volt	Voltage Range	Input Power	Rated Current	Ref. Speed	Max.Airflow		Max.Static Pressure		Noise Level	PQ Curves
Model No	VDC	VDC	Watt	Amp	RPM	CFM	m3/min	Inch/H2O	mm	db(A)
SD600PT-05H	5	4~6	3.8(~4.5)	0.65(~0.9)	2300	25	0.7	0.42	10.67	42	H
SD600PT-05M	5	4~6	3.0	0.55	2000	22	0.6	0.38	9.65	35	M
SD600PT-05L	5	4~6	2.5	0.35	1800	20	0.6	0.35	8.89	30	L
SD600PT-12H	12	8~14	7.2	0.6	2700	30	0.8	0.49	12.45	49	H
SD600PT-12M	12	8~14	5.7	0.47	2300	22	0.6	0.42	10.67	42	M
SD600PT-12L	12	8~14	2.4	0.20	1800	20	0.6	0.35	8.89	30	L
SD600PT-24H	24	12~28	8.8	0.37	2700	30	0.8	0.49	12.45	49	H
SD600PT-24M	24	14~28	7.2	0.30	2300	22	0.6	0.42	10.67	42	M
SD600PT-24L	24	14~28	4.8	0.20	1800	20	0.6	0.35	8.89	30	L
SD600PT-48H	48	24~56	7.2	0.15	2700	30	0.8	0.49	12.45	49	H
SD600PT-48M	48	28~56	5.8	0.12	2300	22	0.6	0.42	10.67	42	M
SD600PT-48L	48	28~60	4.4	0.09	1800	20	0.6	0.35	8.89	30	L

** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%

http://sinwan.eu

Info

Article No.

SD600PT
