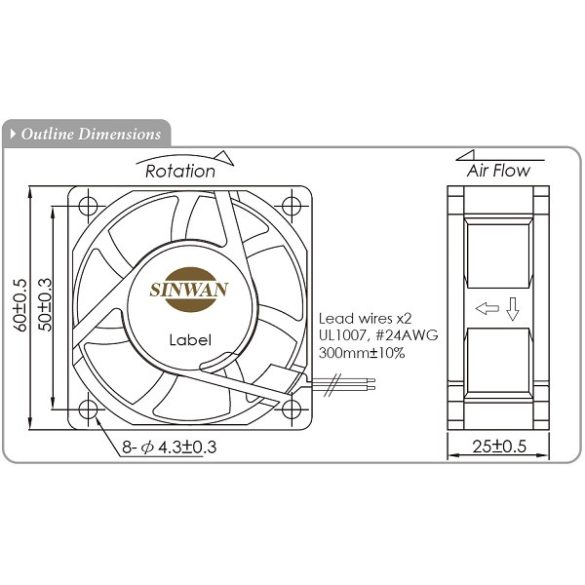

SD6025AN (HR) - Sinwan DCAxial Fan, Plastic Impeller, Dia.60x60x25mm/2.36x1.0inch 57~35 CFM

Rated Volt	Voltage Range	Input Power	Rated Current	Ref. Speed	Max.Airflow		Max.Static Pressure		Noise Level	PQ Curves
Model No	VDC	VDC	Watt	Amp	RPM	CFM	m3/min	Inch/H2O	mm	db(A)
SD6025AN-12SH	12	7~13.2	14.4	1.2	9800	57	1.6	1.17	29.72	66	1
SD6025AN-12HHH	12	7~13.2	9	0.75	8200	54	1.5	0.94	23.88	65	2
SD6025AN-12HH	12	7~13.2	7.2	0.6	7500	49	1.4	0.787	19.99	63	3
SD6025AN-12H	12	7~13.2	6	0.5	6800	45	1.3	0.559	14.2	56	4
SD6025AN-12M	12	7~13.2	4.8	0.4	6000	40	1.1	0.433	11	53	5
SD6025AN-12L	12	7~13.2	2.4	0.2	5000	35	1	0.25	6.35	40	6
SD6025AN-24EH	24	14~26.4	8.4	0.35	8200	54	1.5	0.94	23.88	65	2
SD6025AN-24SHH	24	14~26.4	7.2	0.3	7500	49	1.4	0.787	19.99	63	3
SD6025AN-24SH	24	14~26.4	6	0.25	6800	45	1.3	0.559	14.2	56	4
SD6025AN-24HHH	24	14~26.4	4.8	0.2	6000	40	1.1	0.433	11	53	5
SD6025AN-24HH	24	14~26.4	3.6	0.15	5000	35	1	0.25	6.35	40	6

** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%

Details

Info

Details


	Motor Type:	DC Motor

	Burnout Protection:	Electronically protected, Polarity protected

	IP Protection:	IP55,56,68 optional request

	Frame:	Aluminum die cast, Natural color

	Impeller:	7 blades, glass fiber reinforced thermoplastic, rated UL94V-0

	Bearing:	Two ball bearings

	Rotation:	CCW seen on rotor

	Connection:	Wire lead or terminal flat pin connecting

	Weight:	-

	Dielectric Strength:	500 VAC/min. Max leakage 5mA

	Speed Control:	Optional: PWM, S/C NTC thermister

	Signal Output:	Optional: RD Rotation Detactor, FG Frequency Generator

	Operating Temp:	-10C~+100C

	Storage Temp:	-40C~+75C (at 65%RH)

	Life Expectancy:	L10 70K hours at 40C

http://sinwan.eu

Info

Article No.

SD6025AN_HR
