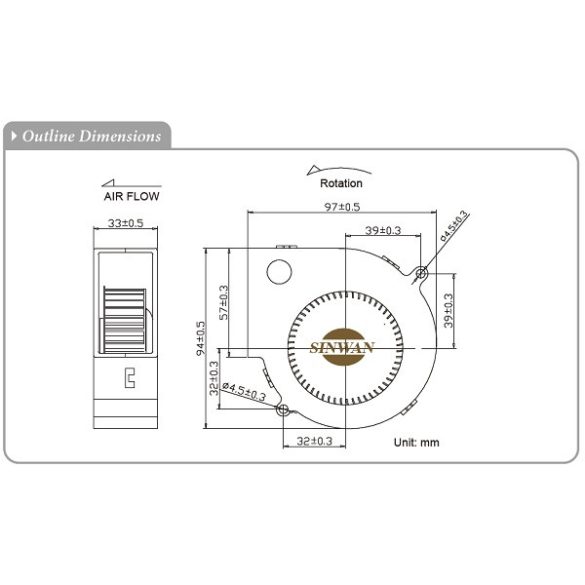

SDB9733PT (57) - Sinwan DC Blower Fan Dia.97x94x33x(57)mm 29~16 CFM

SDB9733PT (57) - Sinwan DC Blower Fan Dia.97x94x33x(57)mm 29~16 CFM
SDB9733PT (57) - Sinwan DC Blower Fan Dia.97x94x33x(57)mm 29~16 CFM
SDB9733PT (57) - Sinwan DC Blower Fan Dia.97x94x33x(57)mm 29~16 CFM
SDB9733PT (57) - Sinwan DC Blower Fan Dia.97x94x33x(57)mm 29~16 CFM
  Motor Type: DC Motor
  Burnout Protection: Auto Restart
  IP Protection: IP55, IP68 (Optional)
  Frame: Glass fiber reinforced thermoplastic, rated UL94V-0
  Impeller: Glass fiber reinforced thermoplastic, rated UL94V-0
  Bearing: Ball bearing
  Rotation: CCW seen on rotor
  Connection: Wire leads
  Weight: 150g
  Dielectric Strength: 500 VAC/min. Max leakage 0.5mA
  Speed Control: Optional: PWM, S/C NTC thermister
  Signal Output: Optional: R/D alarm output, F/G Tachometer output
  Operating Temp: -20C~+65C
  Storage Temp: -20C~+75C (at 65%RH)
  Life Expectancy: L10 70K hours at 40C
To Favourites
Recommend
Print
Question about the product
Details
Info
Details
Rated
Volt		 Voltage
Range

Input
Power

 Rated
Current		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Curves
Model No VDC VDC Watt Amp RPM CFM m3/min Inch/H2O mm db(A)
SDB9733PT-12HHH (57) 12 7~13.2 7.2 0.6 3600 28.8 0.8 1.14 28.96 52 3
SDB9733PT-12HH (57) 12 7~13.2 3.84 0.32 2700 20.1 0.6 0.4 10.16 45 2
SDB9733PT-12H (57) 12 7~13.2 2.52 0.21 2200 16.3 0.5 0.24 6.1 43 1
SDB9733PT-24HHH (57) 24 14~26.4 7.68 0.32 3600 28.8 0.8 1.14 28.96 52 3
SDB9733PT-24HH (57) 24 14~26.4 4.32 0.18 2700 20.1 0.6 0.4 10.16 45 2
SDB9733PT-24H (57) 24 14~26.4 3.36 0.14 2200 16.3 0.5 0.24 6.1 43 1
  • ** = "WB" for wire lead type Ball bearing
  • Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%

http://sinwan.eu

Info
Article No.
SDB9733PT_57
