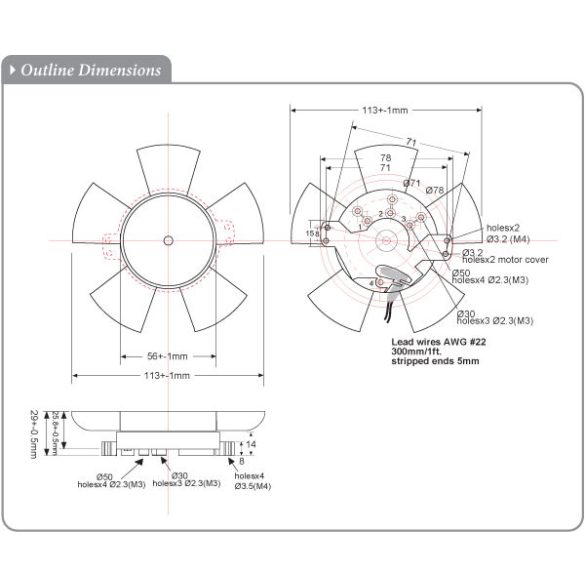

SDK1225 (HR) - Sinwan DC Skeleton Fan, Dia.113x29mm/4.45inch 86~45CFM

Rated Volt	Voltage Range	Input Power	Rated Current	Ref. Speed	Max.Airflow		Max.Static Pressure		Noise Level	PQ Curves
Model No	VDC	VDC	Watt	Amp	RPM	CFM	m3/min	Inch/H2O	mm	db(A)
SDK1225EAN-12H	12	8~13.8	5.4	0.45	2900	86	2.4	0.24	6.1	42	H
SDK1225EAN-12M	12	8~13.8	4.0	0.35	2500	70	2	0.19	4.83	35	M
SDK1225EAN-12L	12	8~14	2.5	0.20	2000	45	1.3	0.15	3.81	25	L
SDK1225EAN-24H	24	14~26	5.5	0.23	2900	86	2.4	0.24	6.1	42	H
SDK1225EAN-24M	24	14~26	4.1	0.17	2500	70	2	0.19	4.83	35	M
SDK1225EAN-24L	24	14~27.6	2.4	0.10	2000	45	1.3	0.15	3.81	25	L
SDK1225EAN-48H	48	22~55	4.5	0.09	2900	86	2.4	0.24	6.1	42	H
SDK1225EAN-48M	48	22~55	3.5	0.07	2500	70	2	0.19	4.83	35	M
SDK1225EAN-48L	48	22~56	2.9	0.06	2000	45	1.3	0.15	3.81	25	L

** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%

Details

Info

Details


	Motor Type:	Brushless DC, auto cutoff, auto restart, locking and polarity protected motor

	Burnout Protection:	Electronically protected, polarity protected

	IP Protection:	-

	Frame:	Aluminum die cast, natural color

	Impeller:	Glass fiber reinforced PBT thermoplastic, UL94V-0 impeller

	Bearing:	Double sealed high precision ball bearing

	Rotation:	CCW seen on rotor

	Connection:	Wire leads connecting AWG22, 350~380mm, stripped ends 3~5mm

	Weight:	-

	Dielectric Strength:	500 VAC/sec. Max leakage 500 micro amp

	Speed Control:

	Signal Output:

	Operating Temp:	Ball bearings -20C~+55C

	Storage Temp:	-25C~+80C (at 65%RH)

	Life Expectancy:	Ball bearings 60,000 hours at 35C, 50,000 hours at 55C
