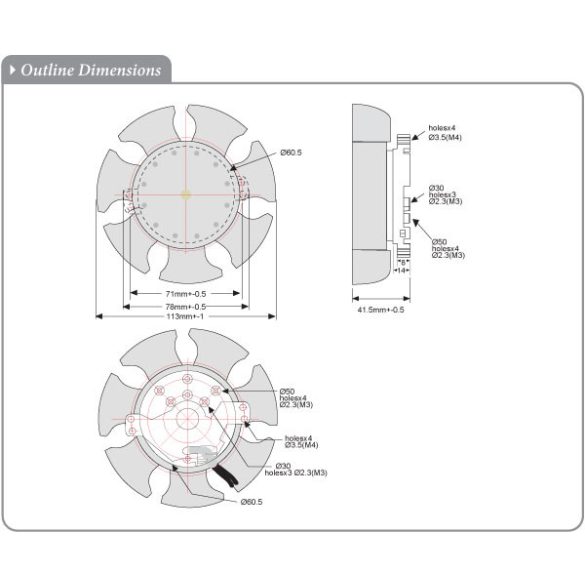

SDK1238EAN (HR) - Sinwan DC Skeleton Fan, Dia.108x41mm/4.3inch 125~60CFM

SDK1238EAN (HR) - Sinwan DC Skeleton Fan, Dia.108x41mm/4.3inch 125~60CFM
SDK1238EAN (HR) - Sinwan DC Skeleton Fan, Dia.108x41mm/4.3inch 125~60CFM
SDK1238EAN (HR) - Sinwan DC Skeleton Fan, Dia.108x41mm/4.3inch 125~60CFM
SDK1238EAN (HR) - Sinwan DC Skeleton Fan, Dia.108x41mm/4.3inch 125~60CFM
Rated
Volt
Voltage
Range

Input
Power

Rated
Current
Ref.
Speed
Max.Airflow Max.Static Pressure Noise
Level
PQ
Curves
Model No VDC VDC Watt Amp RPM CFM m3/min Inch/H2O mm db(A)
SDK1238EAN-12H 12 8~13.8 6.0 0.50 3100 100 2.8 0.28 7.11 42
SDK1238EAN-12M 12 8~13.8 4.8 0.40 2500 78 2.2 0.21 5.33 33
SDK1238EAN-12L 12 8~13.8 2.4 0.20 2000 65 1.8 0.13 3.3 26
SDK1238EAN-24H 24 18~27.6 5.5 0.23 3200 105 3 0.28 7.11 42
SDK1238EAN-24M 24 18~27.6 4.6 0.19 2550 82 2.3 0.21 5.33 33
SDK1238EAN-24L 24 18~27.6 3.6 0.15 2000 65 1.8 0.13 3.3 26
SDK1238EAN-48H 48 28~55.2 5.5 0.10 3200 105 3 0.28 7.11 42
SDK1238EAN-48M 48 28~55.2 4.6 0.08 2550 82 2.3 0.21 5.33 33
SDK1238EAN-48L 48 28~55.2 3.6 0.07 2000 65 1.8 0.13 3.3 26
  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
  • Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
To Favourites
Recommend
Print
Question about the product
Details
Info
Details
  Motor Type: Brushless DC, auto cutoff, auto restart, locking and polarity protected motor
  Burnout Protection:
  IP Protection:
  Frame: Aluminum die cast, natural color
  Impeller: Glass fiber reinforced PBT thermoplastic, UL94V-0 impeller
  Bearing: Double sealed high precision ball bearing
  Rotation: CCW seen on rotor
  Connection: Wire leads connecting AWG22, 350~380mm, stripped ends 3~5mm
  Weight: 180g (0.4Lbs)
  Dielectric Strength: 500 VAC/sec. Max leakage 500 micro amp
  Speed Control:
  Signal Output:
  Operating Temp: Ball bearings -20C~+70C
  Storage Temp:
  Life Expectancy: Ball bearings 65,000 hours at 45C, 50,000 hours at 65C

http://sinwan.eu

Info
Article No.
SDK1238EAN_HR
