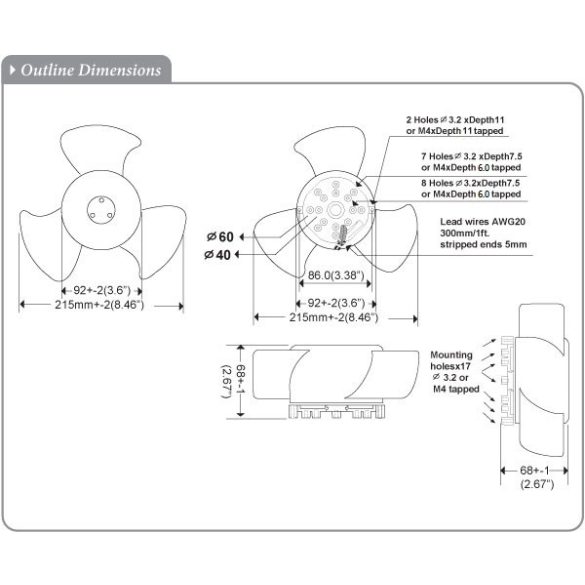

SDK254AN - Sinwan DC Skeleton Fan Dia.215x68mm/8.5inch 830~340CFM

SDK254AN - Sinwan DC Skeleton Fan Dia.215x68mm/8.5inch 830~340CFM
SDK254AN - Sinwan DC Skeleton Fan Dia.215x68mm/8.5inch 830~340CFM
SDK254AN - Sinwan DC Skeleton Fan Dia.215x68mm/8.5inch 830~340CFM
SDK254AN - Sinwan DC Skeleton Fan Dia.215x68mm/8.5inch 830~340CFM
  Rated
Volt		 Voltage
Range

Input
Power

 Rated
Current		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Curves
Model No VDC VDC Watt Amp RPM CFM m3/min Inch/H2O mm db(A)
SDK254AN-12H 12 9~13 23(~78) 1.9(~6.5) 2400 810 22.9 0.78 19.81 64
SDK254AN-12M 12 9~14 13.2(~30) 1.1(~2.5) 2000 680 19.3 0.57 14.48 46
SDK254AN-12L 12 10~16 5.5(~14) 0.45(~1.2) 1650 540 15.3 0.36 9.14 39
SDK254AN-12L (LL) 12 10~16 5.5(~11) 0.45(~0.9) 1000 340 9.6 0.23 5.84 26
SDK254AN-24H 24 16~27 24(~77) 0.97(~3.2) 2500 830 23.5 0.78 19.81 64
SDK254AN-24M 24 16~27.6 13(~29) 0.52(~1.2) 2000 690 19.5 0.57 14.48 46
SDK254AN-24L 24 18~30 5(~12) 0.2(~0.5) 1650 550 15.6 0.37 9.4 39
SDK254AN-24L (LL) 24 18~32 5 (~10) 0.2 (~0.42) 1000 340 9.6 0.23 5.84 26
SDK254AN-48H 48 24~53 23.5(~77) 0.48(~1.6) 2500 830 23.5 0.78 19.81 64
SDK254AN-48M 48 24~56 14.5(~28) 0.3(~0.58) 2000 690 19.5 0.57 14.48 46
SDK254AN-48L 48 28~58 5.8(~12) 0.12(~0.25) 1650 550 15.6 0.37 9.4 39
SDK254AN-48L (LL) 48 28~63 5.8(~10) 0.12(~0.21) 1000 340 9.6 0.23 5.84 26
  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
  • Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
To Favourites
Print
Ask about it
Details
Info
Details
  Motor Type: Programmable microprocessor brushless DC, locked rotor/polarity protected
  Burnout Protection: Electronically protected, polarity protected
  IP Protection: IP55, IP68 (Optional)
  Frame: Aluminum die cast, natural color treatment Optional: Black cosmetics
  Impeller: Glass fiber reinforced PBT thermoplastic, UL94V-0 impeller
  Bearing: Two high precision permanently lubricated ball bearings
  Rotation: CCW seen on rotor
  Connection: Wire leads connecting AWG22, 300~350mm, stripped ends 3~5mm
  Weight: 900 Gm (1.98Lbs)
  Dielectric Strength: 500 VAC/sec., Max leakage 0.5mA
  Speed Control: Optional: PWM, S/C NTC thermister
  Signal Output: Optional: RD Rotation Detactor, FG Frequency Generator
  Operating Temp: -20C~+65C
  Storage Temp: -20C~+75C (at 65%RH)
  Life Expectancy: Indoor free air running test MTBF 90K hours at 35C, 40K hours at 60
