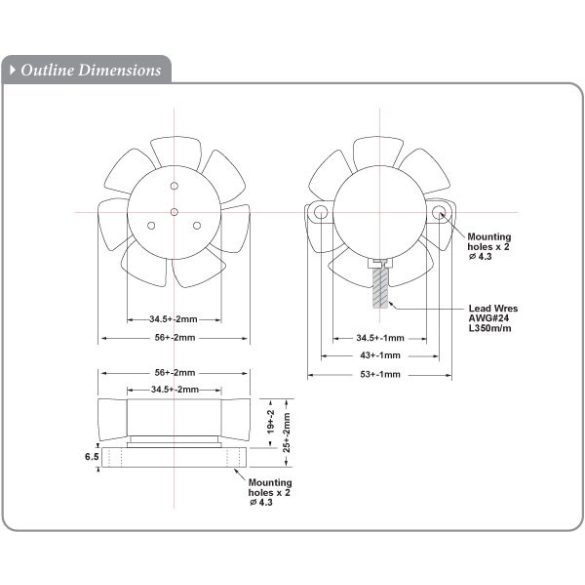

SDK6025 (HR) - Sinwan DC Skeleton Fan, Dia.56x25mm/2.2inch 38~12CFM

SDK6025 (HR) - Sinwan DC Skeleton Fan, Dia.56x25mm/2.2inch 38~12CFM
SDK6025 (HR) - Sinwan DC Skeleton Fan, Dia.56x25mm/2.2inch 38~12CFM
SDK6025 (HR) - Sinwan DC Skeleton Fan, Dia.56x25mm/2.2inch 38~12CFM
SDK6025 (HR) - Sinwan DC Skeleton Fan, Dia.56x25mm/2.2inch 38~12CFM
Rated
Volt		 Voltage
Range

Input
Power

 Rated
Current		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Curves
Model No VDC VDC Watt Amp RPM CFM m3/min Inch/H2O mm db(A)
SDK6025PT-05H(HH) 5 4~6 1.2 0.24 (~0.32) 3600 25 0.7 0.22 5.59 30 HH
SDK6025PT-05H 5 4~7 1.2 0.24 3200 20 0.6 0.17 4.32 26 H
SDK6025PT-05M 5 4~7 0.9 0.17 2800 15 0.4 0.14 3.56 21 M
SDK6025PT-05L 5 4~7 0.6 0.12 2000 12 0.3 0.1 2.54 18 L
SDK6025PT-12H(HHH) 12 8~13.8 1.8 0.15 (~0.29) 5500 38 1.1 0.26 6.6 38 HHH
SDK6025PT-12H(HH) 12 8~13.8 1.8 0.15 (~0.21) 4400 32 0.9 0.24 6.1 32 HH
SDK6025PT-12H 12 8~13.8 1.8 0.15 4000 25 0.7 0.22 5.59 30 H
SDK6025PT-12M 12 8~14 1.5 0.12 3200 17 0.5 0.16 4.06 25 M
SDK6025PT-12L 12 8~14 1 0.08 2500 14 0.4 0.14 3.56 20 L
SDK6025PT-24H(HHH) 24 12~27.6 2.8 0.12 (~0.18) 5500 38 1.1 0.26 6.6 38 HHH
SDK6025PT-24H(HH) 24 12~27.6 2.8 0.12 (~0.15) 4400 32 0.9 0.24 6.1 32 HH
SDK6025PT-24H 24 12~27.6 2.8 0.12 4000 25 0.7 0.22 5.59 30 H
SDK6025PT-24M 24 12~27.6 2.2 0.09 3000 17 0.5 0.16 4.06 25 M
SDK6025PT-24L 24 12~28 1.5 0.06 2500 14 0.4 0.14 3.56 20 L
SDK6025PT-48H(HHH) 48 24~53 3.4 0.07 (~0.11) 5500 37 1 0.26 6.6 38 HHH
SDK6025PT-48H(HH) 48 24~55 3.4 0.07 (~0.1) 4400 32 0.9 0.24 6.1 32 HH
SDK6025PT-48H 48 24~56 3.4 0.07 4200 28 0.8 0.23 5.84 30 H
  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
  • Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
To Favourites
Recommend
Print
Question about the product
Details
Info
Details
  Motor Type: Brushless DC, auto restart impedance & polarity protected motor
  Burnout Protection: Impedance protected
  IP Protection: -
  Frame: Glass fiber reinforced PBT thermoplastic, UL94V-0
  Impeller: Glass fiber reinforced PBT thermoplastic, UL94V-0 impeller
  Bearing: Double sealed high precision ball bearing
  Rotation: CCW seen on rotor
  Connection: Wire leads connecting AWG24, 300~350mm, stripped ends 3~5mm
  Weight: -
  Dielectric Strength: 500 VAC/sec. Max leakage 500 micro amp
  Speed Control:
  Signal Output:
  Operating Temp: Ball bearings -20C~+70C
  Storage Temp: -25C~+80C (at 65%RH)
  Life Expectancy: Ball bearings 60,000 hours at 45C, 45,000 hours at 65C

http://sinwan.eu

Info
Article No.
SDK6025_HR
