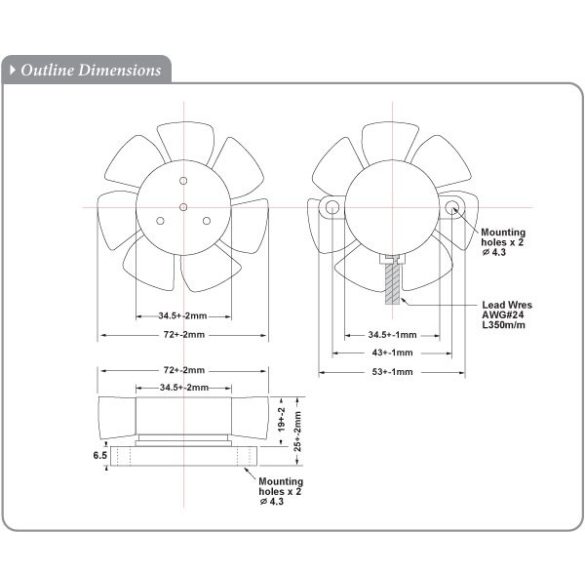

SDK8025 (HR) - Sinwan DC Skeleton Fan, Dia.72x25mm/2.8inch 48~22CFM

SDK8025 (HR) - Sinwan DC Skeleton Fan, Dia.72x25mm/2.8inch 48~22CFM
SDK8025 (HR) - Sinwan DC Skeleton Fan, Dia.72x25mm/2.8inch 48~22CFM
SDK8025 (HR) - Sinwan DC Skeleton Fan, Dia.72x25mm/2.8inch 48~22CFM
SDK8025 (HR) - Sinwan DC Skeleton Fan, Dia.72x25mm/2.8inch 48~22CFM
  Rated
Volt		 Voltage
Range

Input
Power

 Rated
Current		 Ref.
Speed		 Max.Airflow Max.Static Pressure Noise
Level		 PQ
Curves
Model No VDC VDC Watt Amp RPM CFM m3/min Inch/H2O mm db(A)
SDK8025PT-05H (HH) 5 4~6 1.4 0.28 3200 40 1.1 0.23 5.84 33 HH
SDK8025PT-05H 5 4~7 1.4 0.28 2800 35 1 0.22 5.59 32 H
SDK8025PT-05M 5 4~7 1.0 0.20 2200 30 0.8 0.15 3.81 27 M
SDK8025PT-05L 5 4~7 0.8 0.15 1800 22 0.6 0.10 2.54 21 L
SDK8025PT-12H (HH) 12 8~13.8 2.2 0.18 3800 48 1.4 0.26 6.6 35 HH
SDK8025PT-12H 12 8~13.8 2.2 0.18(~0.31) 3450 40 1.1 0.23 5.84 33 H
SDK8025PT-12M 12 8~14 1.8 0.15 2700 32 0.9 0.16 4.06 28 M
SDK8025PT-12L 12 8~14 1.4 0.12 2000 22 0.6 0.10 2.54 21 L
SDK8025PT-24H (HH) 24 12~27.6 2.9 0.12 3800 48 1.4 0.26 6.6 35 HH
SDK8025PT-24H 24 12~27.6 2.9 0.12 3300 40 1.1 0.23 5.84 33 H
SDK8025PT-24M 24 12~27.6 2.4 0.08 2700 32 0.9 0.16 4.06 28 M
SDK8025PT-24L 24 12~28 2.0 0.08 2000 22 0.6 0.10 2.54 21 L
SDK8025PT-48H (HH) 48 24~55 3.8 0.08 3800 48 1.4 0.26 6.6 35 HH
SDK8025PT-48H 48 24~56 3.8 0.08 3300 40 1.1 0.23 5.84 33 H
  • ** = "WB" for wire lead type Ball bearing, or "TB" for terminal type Ball bearing
  • Sinwan reserves the right to change data and improve electrical & mechanical design without notice, data tolerance +-10%
To Favourites
Recommend
Print
Question about the product
Details
Info
Details
  Motor Type: Brushless DC, auto restart impedance & polarity protected motor
  Burnout Protection: Impedance protected
  IP Protection: -
  Frame: Glass fiber reinforced PBT thermoplastic, UL94V-0
  Impeller: Glass fiber reinforced PBT thermoplastic, UL94V-0 impeller
  Bearing: Double sealed high precision ball bearing
  Rotation: CCW seen on rotor
  Connection: Wire leads connecting AWG24, 300~350mm, stripped ends 3~5mm
  Weight: -
  Dielectric Strength: 500 VAC/sec. Max leakage 500 micro amp
  Speed Control:
  Signal Output:
  Operating Temp: Ball bearings -20C~+70C
  Storage Temp: -25C~+80C (at 65%RH)
  Life Expectancy: Ball bearings 60,000 hours at 45C, 45,000 hours at 65C

http://sinwan.eu

Info
Article No.
SDK8025_HR
